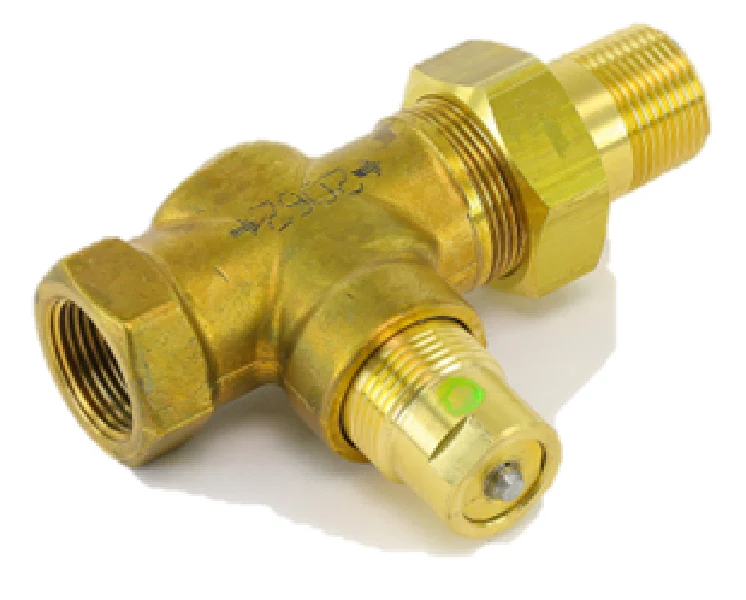

Siemens Building Technology 599-02062 Valve
The Siemens 599-02062 is a high-performance 2-way normally open globe valve designed for demanding terminal unit applications in commercial HVAC systems. Featuring a 3/4-inch NPT x Union Male connection, this Powermite MT Series valve body is engineered with a 6.3 Cv capacity and a modified equal percentage flow characteristic, ensuring precise thermal control in hot water, chilled water, and glycol solutions (up to 50%). Built for longevity, the forged brass body is paired with stainless steel trim, making it suitable for low-pressure steam applications up to 15 psi. As an ANSI Class 250 rated component, it provides a robust ANSI Leakage Class IV seal, minimizing energy loss in the "off" position. This Siemens globe valve utilizes a direct-coupled universal bonnet that allows for tool-free installation of MT Series actuators, significantly reducing field labor time. It is a reliable choice for contractors managing fan coils, reheat coils, and unit ventilators requiring a 7/32-inch stroke.
Key Benefits:- High Durability: The forged brass body and stainless steel trim resist corrosion and wear in diverse hydronic environments.
- Precision Throttling: Modified equal percentage flow provides linear heat transfer for superior temperature stability.
- Contractor Friendly: The direct-coupled bonnet enables fast, manual connection to electronic or pneumatic actuators without extra hardware.
- Wide Temperature Range: Rated for media temperatures from 35°F to 250°F, covering most heating and cooling requirements.
- Which actuators are compatible with the Siemens 599-02062? This valve body is designed specifically for Siemens MT Series pneumatic and electronic actuators with a 7/32-inch (5.5 mm) stroke.
- Can this valve be used for steam service? Yes, the stainless steel trim allows this specific model to handle saturated steam up to 15 psi.
- What is the connection type for the 599-02062? It features a 3/4" NPT internal thread on the inlet and a Union Male connection on the outlet for easy system integration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
