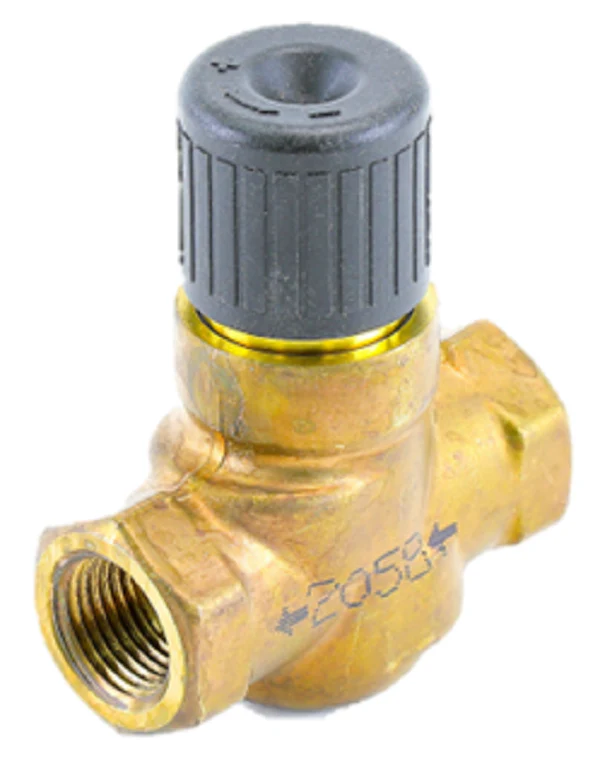

Siemens Building Technology 599-02058 Valve
The Siemens 599-02058 is a high-performance Powermite MT Series globe valve engineered for precise control in closed-loop hydronic systems. This 2-way normally open valve features a 1/2-inch NPT connection and is built with a rugged forged brass body and stainless steel trim, making it suitable for low-pressure steam applications up to 15 psi or glycol solutions up to 50%. With a 4.0 Cv rating and modified equal percentage flow characteristic, it ensures stable linear control even at low flow rates. Designed for seamless integration with Siemens electronic actuators or pneumatic assemblies, it utilizes a direct-coupled universal bonnet that requires no tools for field installation. This ANSI Class 250 rated valve body is a standard choice for contractors servicing fan coils, baseboard radiation, and reheat coils where ANSI Leakage Class IV performance is required to prevent energy loss and ensure system efficiency.
Key Benefits for Technicians:
- Durable Construction: The stainless steel trim provides superior resistance to scaling and corrosion compared to standard brass, extending service life in steam and water systems.
- Simplified Installation: The universal bonnet design allows for rapid, tool-free coupling with compatible MT series actuators, reducing labor time on the job site.
- Tight Shut-off: Engineered to meet ANSI Class IV leakage standards, ensuring 0.01% of Cv maximum leakage to maintain precise zone temperature control.
- High Rangeability: Offers greater than 100:1 rangeability, providing the precise flow control necessary for modern high-efficiency terminal units.
Common Questions:
Is this valve compatible with pneumatic actuators?
Yes, the 599-02058 is designed to work with both electronic and pneumatic MT series actuators. Note that for pneumatic setups, the spring is housed within the valve body itself.
Can I use this for high-pressure steam?
This specific model is rated for saturated steam applications up to 15 psi. For higher pressure requirements, consult the Siemens technical data for the appropriate ANSI-rated assembly.
What is the fail-safe position of this valve?
This is a normally open (NO) valve, meaning the flow path is open when no force is applied to the stem. The final fail position (open or closed) will depend on the specific actuator and spring-return configuration installed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
