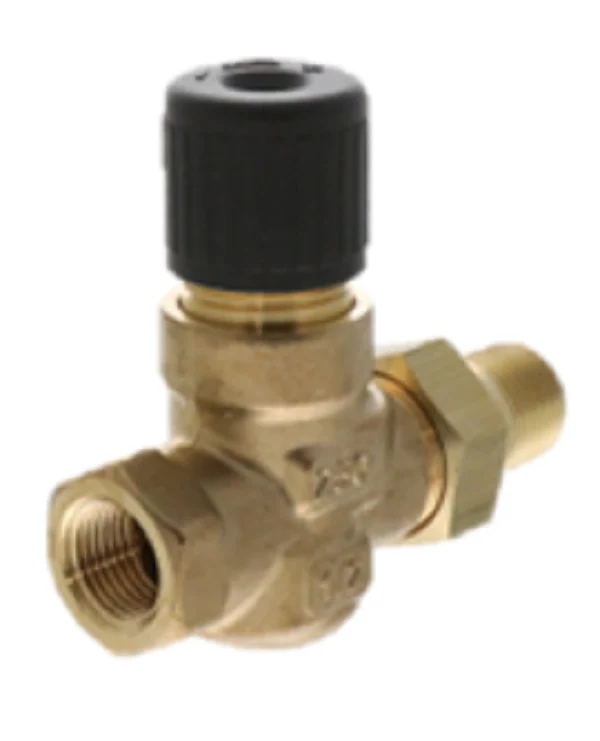

Siemens Building Technology 599-02056 Valve
The Siemens Building Technology 599-02056 is a professional-grade 1/2-inch 2-way normally open globe valve engineered for precision control in hydronic HVAC applications. Built with a rugged forged brass body and high-durability stainless steel trim, this normally open valve is designed to regulate the flow of hot or chilled water, 50% glycol solutions, and low-pressure steam up to 15 psi. As part of the Powermite MT Series, it features a 2.5 Cv flow coefficient with a modified equal percentage flow characteristic, ensuring stable local loop control and high rangeability in terminal units such as fan coils and reheat coils. The NPT x Union Male configuration facilitates a streamlined installation, while the ANSI Class 250 rating and ANSI Class IV leakage protection ensure reliable shut-off and long-term performance under demanding hydraulic conditions. This Siemens zone valve is fully compatible with MT Series electronic and pneumatic actuators, utilizing a direct-coupled universal bonnet that requires no specialized tools for field mounting.
Key Benefits- Durable Construction: The stainless steel trim resists corrosion and wear, significantly extending the service life in steam and high-temperature water systems.
- Precise Modulation: Features a modified equal percentage flow curve to provide accurate temperature regulation and prevent hunting in terminal unit applications.
- Simplified Service: The direct-coupled bonnet allows for fast actuator installation and replacement without the need for manual linkages or complex adjustments.
- High Pressure Performance: Engineered for ANSI Class 250 systems with a high close-off capability to maintain control in rigorous hydronic environments.
What actuators are compatible with the Siemens 599-02056?
This valve body is specifically designed for use with Siemens Powermite MT Series actuators, including the SFA/SFP and SSA/SSP electronic series or 599-01088 pneumatic series, utilizing a 7/32-inch (5.5 mm) stroke.
Can this valve be used for steam applications?
Yes, the stainless steel trim makes this unit suitable for saturated steam applications up to a maximum of 15 psi.
What is the maximum operating temperature for this valve body?
The 599-02056 is rated for medium temperatures ranging from 35°F to 250°F (2°C to 121°C).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
