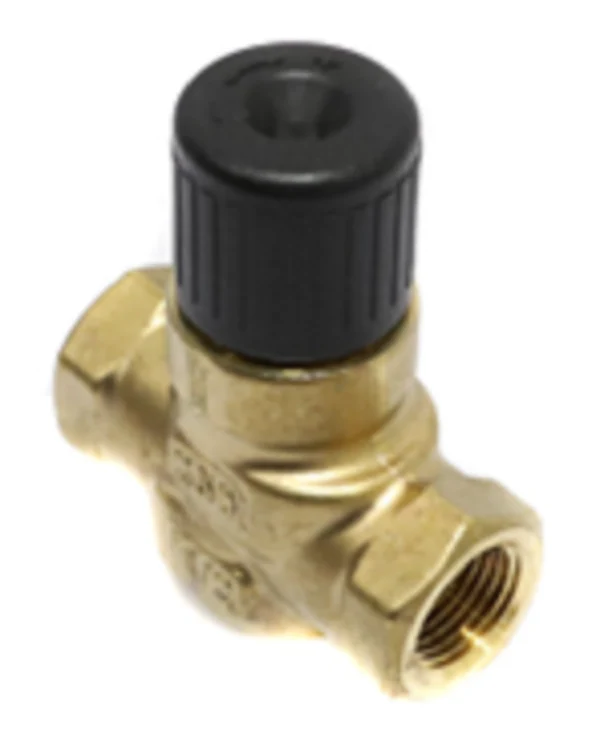

Siemens Building Technology 599-02053 Valve
The Siemens 599-02053 is a professional-grade two-way normally open globe valve engineered for precision flow control in terminal unit applications. Part of the rugged Powermite 599 MT Series, this valve features a 1.6 Cv capacity and utilizes a modified equal percentage flow characteristic to ensure linear heat output, making it an ideal choice for 1/2 inch NPT hydronic or steam system integration. Specifically built for durability, the forged brass body is paired with stainless steel trim, allowing for compatibility with low-pressure steam up to 15 psi, as well as water and glycol solutions (up to 50%).
Designed for field flexibility, the universal bonnet architecture allows for seamless coupling with various electronic or pneumatic actuators featuring a 7/32-inch (5.5 mm) stroke. With an ANSI Class 250 pressure rating and ANSI Leakage Class IV performance, this valve provides reliable close-off and regulation for fan coil units, reheat coils, and unit conditioners. Technicians will appreciate the direct-coupled design, which minimizes installation time and eliminates the need for specialized tools during mounting.
Key Benefits- Corrosion Resistance: The stainless steel trim provides superior longevity when compared to standard brass trim, especially in steam or chemical-treated water applications.
- Precise Modulation: Features a modified equal percentage plug to maintain stable temperature control across varying load conditions.
- High Pressure Durability: Rated for ANSI 250, ensuring safe operation at temperatures ranging from 35°F to 250°F.
- Versatile Actuation: Compatible with various Siemens Powermite MT Series actuators, including pneumatic or 24V electronic versions.
- Can this valve be used for steam applications? Yes, because this model is equipped with stainless steel trim, it is rated for low-pressure steam applications up to 15 psi.
- What type of actuator stroke is required? This valve body is designed to work with actuators that have a 7/32-inch (5.5 mm) stroke and provide at least 67 lb (300 N) of force.
- Is the valve normally open or normally closed? The 599-02053 is a normally open configuration, meaning the valve remains open by spring pressure when the actuator is de-energized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
