Siemens Building Technology 599-02051 Valve

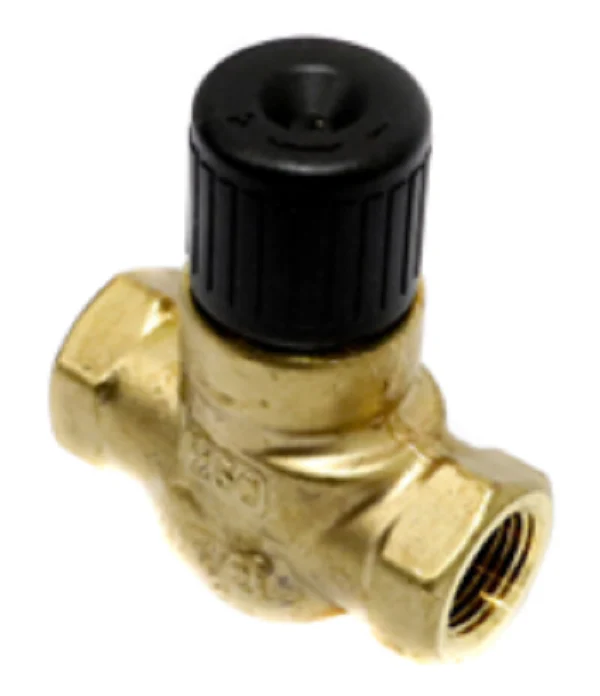

The Siemens Building Technology 599-02051 is a high-performance 1/2 inch 2-way normally open globe valve engineered for precision in terminal unit and hydro-coil applications. Featuring a forged brass body and stainless steel trim, this valve is purpose-built to handle demanding media, including saturated steam up to 15 psi or hot and chilled water with up to 50% glycol. With a 1.0 Cv and a modified equal percentage flow characteristic, it ensures stable modulating control and superior rangeability exceeding 100:1. The Powermite MT Series architecture incorporates a direct-coupled universal bonnet, allowing for seamless, tool-free installation of pneumatic or electronic actuators. Designed for high-pressure environments, it carries an ANSI Class 250 rating and maintains ANSI Class IV leakage standards. This female NPT connection valve is an industry standard for technicians seeking HVAC control valve reliability in tight mechanical spaces where modified equal percentage response is critical for system balancing.
Key Benefits- Enhanced Durability: The stainless steel trim and stem provide superior resistance to erosion and corrosion compared to standard brass.
- Flexible Actuation: Compatible with various MT series actuators (67 lbf minimum force) for both electronic and pneumatic control strategies.
- Tight Shut-off: Achieves ANSI Leakage Class IV, minimizing energy loss and improving overall system efficiency.
- Steam Rated: Robust internal construction allows for reliable operation in low-pressure saturated steam systems up to 15 psi.
- Tool-Free Mounting: The universal bonnet design significantly reduces labor time during field installation or actuator replacement.
Is the 599-02051 compatible with pneumatic actuators?
Yes, this valve body is designed to integrate with pneumatic actuators that have a 7/32-inch (5.5 mm) stroke. Note that the spring is located within the valve body itself.
Can this valve be used for steam applications?
This specific model features stainless steel trim, making it suitable for saturated steam applications up to 15 psi, unlike the brass-trimmed variants.
What is the maximum glycol concentration for this globe valve?
The internal seals and EPDM O-rings are rated for water-glycol solutions up to a 50% concentration.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
