Siemens Building Technology 599-02047 Valve

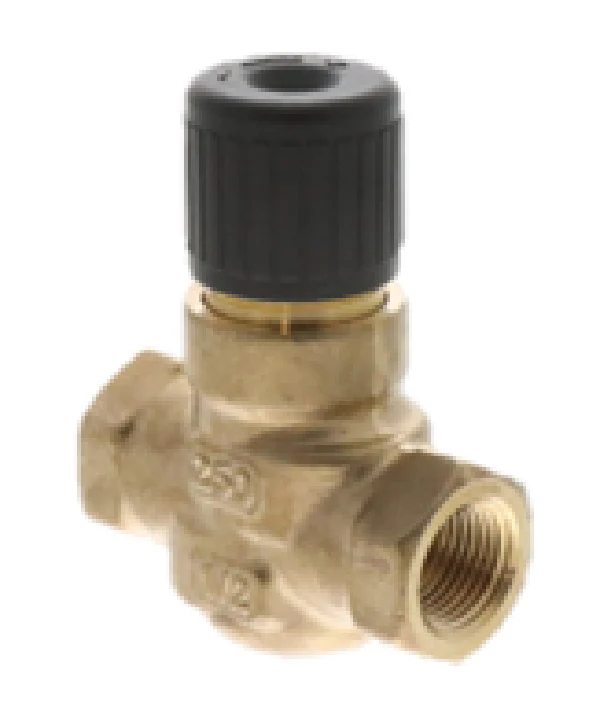

The Siemens 599-02047 is a precision-engineered 1/2 inch NPT 2-way globe valve designed for terminal unit applications in demanding HVAC environments. Built for Normally Open (NO) operation, this Powermite MT Series valve features a 0.4 Cv flow coefficient and a modified equal percentage flow characteristic, ensuring stable control even at low load requirements. The forged brass body is paired with stainless steel trim and a stainless steel stem, making it suitable for hot water, chilled water, and saturated steam applications up to 15 psi. Engineers and contractors value the ANSI Class 250 pressure rating and ANSI Leakage Class IV performance, which provides a tight seal with only 0.01% leakage of Cv. The direct-coupled universal bonnet allows for seamless installation of electronic or pneumatic actuators without specialized tools, maintaining a 7/32-inch stroke for consistent modulation and long-term reliability in the field.
Key Benefits- Corrosion Resistance: The stainless steel trim and stem offer superior durability compared to standard brass, specifically for steam or aggressive media applications.
- Precision Control: The 0.4 Cv rating and modified equal percentage plug provide stable throttling for small-capacity terminal units like fan coils and reheat coils.
- Ease of Service: Features a direct-coupled universal bonnet, allowing for fast actuator mounting and field replacement with no tools required.
- High Pressure Handing: ANSI Class 250 rating ensures safety and performance in high-rise or high-pressure loop systems.
What actuators are compatible with the Siemens 599-02047?
This valve body is designed for use with Siemens MT Series actuators, including the SSC, SQS, and SAS series electronic actuators, as well as 2-inch pneumatic actuators. It requires an actuator with a 7/32-inch (5.5 mm) stroke.
Can this valve be used for steam applications?
Yes, because this model features stainless steel trim, it is rated for saturated steam applications up to a maximum of 15 psi. Standard brass trim models do not carry this rating.
What is the maximum glycol concentration allowed?
The EPDM O-ring packing and brass/stainless construction are compatible with water-glycol solutions up to a 50% concentration.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
