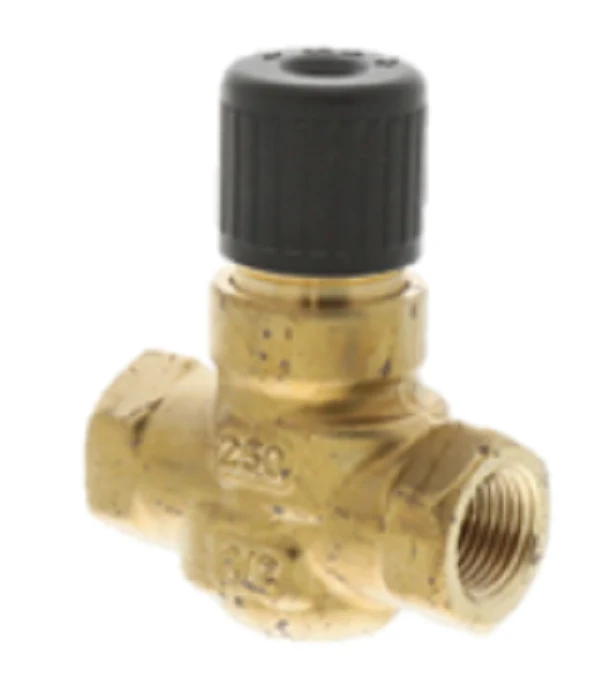

Siemens Building Technology 599-02041 Valve
The Siemens Building Technology 599-02041 is a high-performance 2-way normally open globe valve designed for precision control in terminal unit applications. Featuring a 1/2" NPT connection and a 4 Cv flow capacity, this Powermite MT Series valve body is engineered for compatibility with both electronic and pneumatic actuators utilizing a 7/32-inch stroke. The forged brass body and brass trim provide a rugged solution for controlling hot or chilled water, as well as glycol solutions up to 50%, within a temperature range of 35°F to 250°F. Its modified equal percentage flow characteristic ensures linear heat output, while the ANSI Class 250 rating and Class IV leakage standards (0.01% of Cv) deliver the reliable close-off required for modern hydronic systems. This HVAC control valve is a standard choice for fan coil units and pneumatic-to-electronic retrofits.
Key Benefits- Universal Compatibility: Seamlessly integrates with Siemens MT Series actuators, including SFA, SFP, SSA, and SSP electronic series or 2-inch pneumatic actuators.
- High Precision Flow: Optimized modified equal percentage curves provide superior throttling and stable temperature control in HVAC terminal units.
- Durable Construction: The forged brass body and EPDM O-ring packing ensure longevity in demanding water and steam-glycol applications.
- Streamlined Installation: Designed with a direct-coupled universal bonnet that allows for actuator mounting without the need for specialized tools.
What is the maximum glycol concentration for this Siemens globe valve?
This 1/2" brass globe valve is rated for use with water-glycol solutions up to a 50% concentration, making it ideal for chilled water systems prone to freezing.
Which actuators are compatible with the Siemens 599-02041?
It is designed to work with all Siemens Powermite MT Series actuators that provide a minimum of 67 lbf (300 N) of force and a 5.5mm stroke.
Can this valve be used for steam applications?
This specific model features brass trim and is primarily rated for liquid media. For low-pressure steam up to 15 psi, a stainless steel trim variant is typically recommended.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $63.25
-65%$63.25
$22.14Siemens Building Technology 599-02041 Valve
The Siemens Building Technology 599-02041 is a high-performance 2-way normally open globe valve designed for precision control in terminal unit applications. Featuring a 1/2" NPT connection and a 4 Cv flow capacity, this Powermite MT Series valve body is engineered for compatibility with both electronic and pneumatic actuators utilizing a 7/32-inch stroke. The forged brass body and brass trim provide a rugged solution for controlling hot or chilled water, as well as glycol solutions up to 50%, within a temperature range of 35°F to 250°F. Its modified equal percentage flow characteristic ensures linear heat output, while the ANSI Class 250 rating and Class IV leakage standards (0.01% of Cv) deliver the reliable close-off required for modern hydronic systems. This HVAC control valve is a standard choice for fan coil units and pneumatic-to-electronic retrofits.
Key Benefits- Universal Compatibility: Seamlessly integrates with Siemens MT Series actuators, including SFA, SFP, SSA, and SSP electronic series or 2-inch pneumatic actuators.
- High Precision Flow: Optimized modified equal percentage curves provide superior throttling and stable temperature control in HVAC terminal units.
- Durable Construction: The forged brass body and EPDM O-ring packing ensure longevity in demanding water and steam-glycol applications.
- Streamlined Installation: Designed with a direct-coupled universal bonnet that allows for actuator mounting without the need for specialized tools.
What is the maximum glycol concentration for this Siemens globe valve?
This 1/2" brass globe valve is rated for use with water-glycol solutions up to a 50% concentration, making it ideal for chilled water systems prone to freezing.
Which actuators are compatible with the Siemens 599-02041?
It is designed to work with all Siemens Powermite MT Series actuators that provide a minimum of 67 lbf (300 N) of force and a 5.5mm stroke.
Can this valve be used for steam applications?
This specific model features brass trim and is primarily rated for liquid media. For low-pressure steam up to 15 psi, a stainless steel trim variant is typically recommended.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
