Siemens Building Technology 599-02039 Valve

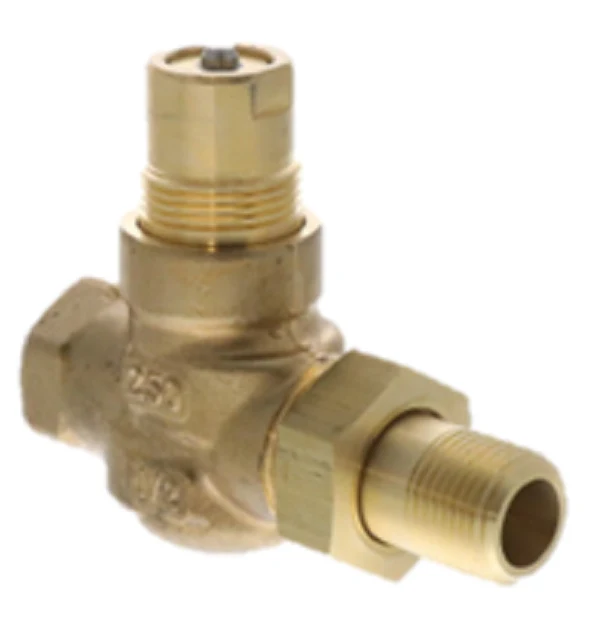

The Siemens 599-02039 is a member of the Powermite 599 MT Series, engineered specifically for high-demand terminal unit applications. This 1/2 inch 2-way globe valve features a normally open flow configuration and a 2.5 Cv rating with a modified equal percentage flow characteristic, ensuring precise throttling control of hot or chilled water, water-glycol solutions up to 50%, and low-pressure steam up to 15 psi. Built with a rugged forged brass body and brass trim, this valve is designed to meet ANSI Class 250 pressure standards.
For seamless integration in tight mechanical spaces, the 599-02039 utilizes an NPT female x Union Male end connection. The direct-coupled universal bonnet allows for rapid field installation without the need for specialized tools. This Siemens globe valve is compatible with any MT Series pneumatic or electronic actuator featuring a 7/32-inch (5.5 mm) stroke, providing reliable 0.01% of Cv leakage per ANSI Class IV standards. Whether you are servicing fan coil units, baseboard radiation, or reheat coils, this valve provides the durability and performance necessary for professional hydronic system management.
Key Benefits:- Precise Throttling: Features a modified equal percentage flow characteristic for optimal temperature regulation in HVAC systems.
- Rugged Construction: Forged brass body and internal brass trim are rated for ANSI 250 pressure classes and media temperatures up to 250°F.
- Universal Bonnet: Designed for direct-coupling with Siemens MT Series actuators, reducing labor time and simplifying replacement in the field.
- Superior Sealing: Achieves ANSI Class IV leakage ratings to ensure high efficiency and minimal system loss when closed.
- What actuators are compatible with the Siemens 599-02039? This valve body is designed to work with all Siemens MT Series pneumatic and electronic actuators with a 5.5 mm stroke, including the SAS and SSC series.
- Can this valve be used for steam applications? Yes, it is rated for low-pressure steam up to 15 psi, though stainless steel trim models are often preferred for high-cycle steam duty.
- What is the maximum glycol concentration allowed? It is safely rated for water-glycol solutions with up to a 50% concentration.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
