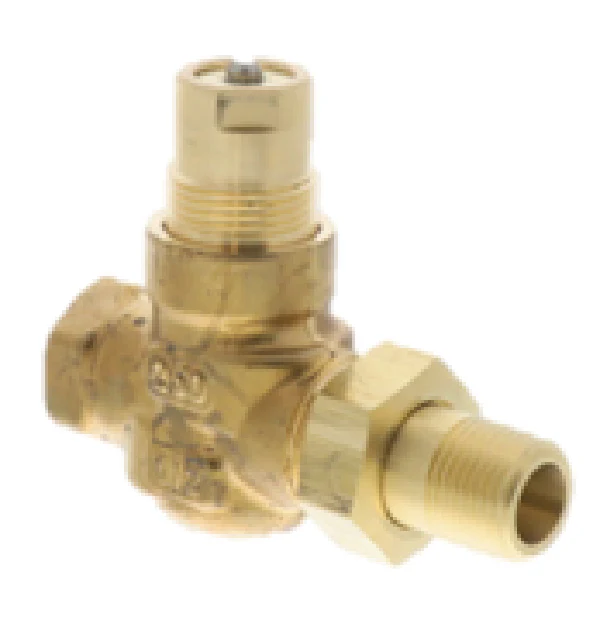

Siemens Building Technology 599-02035 Valve
The Siemens 599-02035 is a professional-grade two-way normally open globe valve designed for precision control within terminal unit applications. Featuring a 1/2 inch NPT x Union Male connection and a 1.0 Cv rating, this Powermite MT Series valve utilizes modified equal percentage flow characteristics to ensure linear heat output in hydronic systems. The forged brass body (C37700) and brass trim provide the durability required for hot and chilled water service, as well as 50% water-glycol mixtures. Engineered for ANSI Class 250 pressure ratings, it features a direct-coupled universal bonnet that allows for no-tool installation with compatible electronic or pneumatic actuators, such as the SAS or SSC series. With a 7/32-inch stroke and a leakage rate compliant with ANSI Class IV (0.01% of Cv), this valve is a critical component for maintaining high-efficiency HVAC terminal unit control and hydronic temperature regulation.
Key Benefits:
- Compatible with Siemens MT Series actuators offering 67 lbf (300 N) of force.
- Maintains superior control with greater than 50:1 rangeability.
- Robust EPDM O-ring packing and metal-to-metal seating for long-term reliability.
- Broad operating range from 35°F to 250°F for diverse system demands.
- Simplified maintenance via the manual override and visual position indication.
Common Questions:
What actuators are compatible with the Siemens 599-02035?
This valve is designed for the Powermite MT Series, specifically compatible with SAS and SSC electronic actuators or 2-inch pneumatic actuators with a 5.5 mm stroke.
Can this valve be used for steam applications?
Standard brass trim models are optimized for liquid media. For low-pressure steam up to 15 psi, configurations with stainless steel trim are typically recommended.
Is the mounting orientation restricted?
For peak performance, install the valve with the actuator above the valve body. It can be mounted in any orientation from vertical to horizontal, but avoiding a "downward-facing" actuator position prevents moisture from entering the electronics.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $69.28
-65%$69.28
$24.25Siemens Building Technology 599-02035 Valve
The Siemens 599-02035 is a professional-grade two-way normally open globe valve designed for precision control within terminal unit applications. Featuring a 1/2 inch NPT x Union Male connection and a 1.0 Cv rating, this Powermite MT Series valve utilizes modified equal percentage flow characteristics to ensure linear heat output in hydronic systems. The forged brass body (C37700) and brass trim provide the durability required for hot and chilled water service, as well as 50% water-glycol mixtures. Engineered for ANSI Class 250 pressure ratings, it features a direct-coupled universal bonnet that allows for no-tool installation with compatible electronic or pneumatic actuators, such as the SAS or SSC series. With a 7/32-inch stroke and a leakage rate compliant with ANSI Class IV (0.01% of Cv), this valve is a critical component for maintaining high-efficiency HVAC terminal unit control and hydronic temperature regulation.
Key Benefits:
- Compatible with Siemens MT Series actuators offering 67 lbf (300 N) of force.
- Maintains superior control with greater than 50:1 rangeability.
- Robust EPDM O-ring packing and metal-to-metal seating for long-term reliability.
- Broad operating range from 35°F to 250°F for diverse system demands.
- Simplified maintenance via the manual override and visual position indication.
Common Questions:
What actuators are compatible with the Siemens 599-02035?
This valve is designed for the Powermite MT Series, specifically compatible with SAS and SSC electronic actuators or 2-inch pneumatic actuators with a 5.5 mm stroke.
Can this valve be used for steam applications?
Standard brass trim models are optimized for liquid media. For low-pressure steam up to 15 psi, configurations with stainless steel trim are typically recommended.
Is the mounting orientation restricted?
For peak performance, install the valve with the actuator above the valve body. It can be mounted in any orientation from vertical to horizontal, but avoiding a "downward-facing" actuator position prevents moisture from entering the electronics.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
