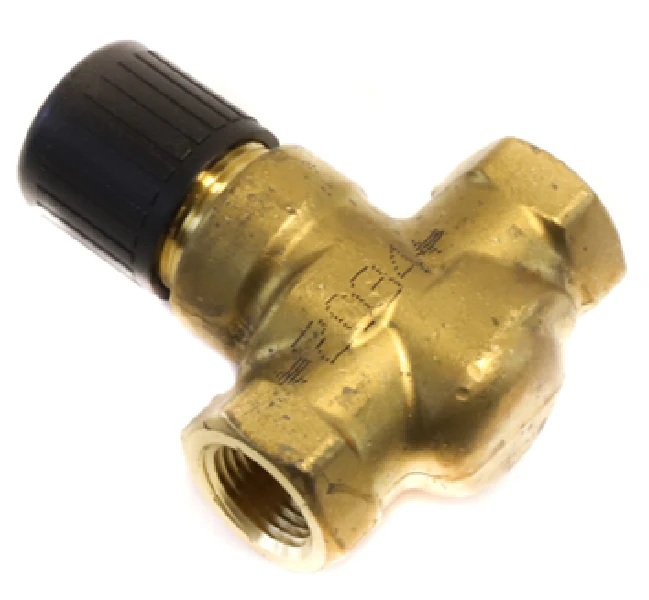

Siemens Building Technology 599-02034 Valve
The Siemens 599-02034 is a precision-engineered normally open globe valve designed for demanding terminal unit applications in hydronic systems. Featuring a 1/2 inch NPT connection and a 1.0 Cv rating, this 2-way valve body is constructed with a rugged forged brass body and reliable brass trim. It utilizes a modified equal percentage flow characteristic to ensure stable, linear heat transfer in hot or chilled water applications. Engineered for seamless integration, this zone valve features a direct-coupled universal bonnet that allows for tool-free installation when paired with compatible Siemens Powermite MT Series actuators, such as the SFA, SSA, or SAS series. With an ANSI Class 250 pressure rating and a media temperature range of 35°F to 250°F, this valve is optimized for glycol solutions up to 50% and provides an ANSI Leakage Class IV shut-off. This is a critical component for contractors requiring high-rangeability control in fan coils, baseboards, and reheat coils.
Key Benefits for Technicians- Universal Compatibility: Designed for easy field assembly with MT Series electronic actuators or pneumatic actuators with a 5.5mm stroke.
- Precise Throttling: The modified equal percentage plug provides superior control at low flow rates, reducing temperature hunting.
- Durable Construction: The brass trim and stainless steel stem offer long-term resistance to scaling and corrosion in closed-loop systems.
- Simplified Installation: FxF NPT threads and a hand-tightened actuator coupling reduce labor time during retrofit or new construction.
- High Pressure Performance: Meets ANSI 250 standards, ensuring safety and reliable close-off in high-rise or commercial HVAC loops.
What actuators are compatible with the Siemens 599-02034?
This valve body is explicitly designed for Siemens MT Series actuators. For electronic control, use the SSC or SAS series (24V or 120V). For pneumatic applications, 2-inch actuators with 3-8, 8-13, or 10-15 psi spring ranges are compatible, though the spring is integrated into the valve body itself.
Can this valve be used for steam applications?
The 599-02034 features brass trim and is primarily rated for water and glycol. For low-pressure steam up to 15 psi, Siemens recommends the version with stainless steel trim to prevent premature wire-drawing and seat erosion.
What is the fail-safe position of this valve?
This is a Normally Open (NO) valve. Upon loss of actuator force or when the stem is up, the valve remains open to allow full flow, which is typically preferred for freeze protection in heating coils.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $63.25
-65%$63.25
$22.14Siemens Building Technology 599-02034 Valve
The Siemens 599-02034 is a precision-engineered normally open globe valve designed for demanding terminal unit applications in hydronic systems. Featuring a 1/2 inch NPT connection and a 1.0 Cv rating, this 2-way valve body is constructed with a rugged forged brass body and reliable brass trim. It utilizes a modified equal percentage flow characteristic to ensure stable, linear heat transfer in hot or chilled water applications. Engineered for seamless integration, this zone valve features a direct-coupled universal bonnet that allows for tool-free installation when paired with compatible Siemens Powermite MT Series actuators, such as the SFA, SSA, or SAS series. With an ANSI Class 250 pressure rating and a media temperature range of 35°F to 250°F, this valve is optimized for glycol solutions up to 50% and provides an ANSI Leakage Class IV shut-off. This is a critical component for contractors requiring high-rangeability control in fan coils, baseboards, and reheat coils.
Key Benefits for Technicians- Universal Compatibility: Designed for easy field assembly with MT Series electronic actuators or pneumatic actuators with a 5.5mm stroke.
- Precise Throttling: The modified equal percentage plug provides superior control at low flow rates, reducing temperature hunting.
- Durable Construction: The brass trim and stainless steel stem offer long-term resistance to scaling and corrosion in closed-loop systems.
- Simplified Installation: FxF NPT threads and a hand-tightened actuator coupling reduce labor time during retrofit or new construction.
- High Pressure Performance: Meets ANSI 250 standards, ensuring safety and reliable close-off in high-rise or commercial HVAC loops.
What actuators are compatible with the Siemens 599-02034?
This valve body is explicitly designed for Siemens MT Series actuators. For electronic control, use the SSC or SAS series (24V or 120V). For pneumatic applications, 2-inch actuators with 3-8, 8-13, or 10-15 psi spring ranges are compatible, though the spring is integrated into the valve body itself.
Can this valve be used for steam applications?
The 599-02034 features brass trim and is primarily rated for water and glycol. For low-pressure steam up to 15 psi, Siemens recommends the version with stainless steel trim to prevent premature wire-drawing and seat erosion.
What is the fail-safe position of this valve?
This is a Normally Open (NO) valve. Upon loss of actuator force or when the stem is up, the valve remains open to allow full flow, which is typically preferred for freeze protection in heating coils.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
