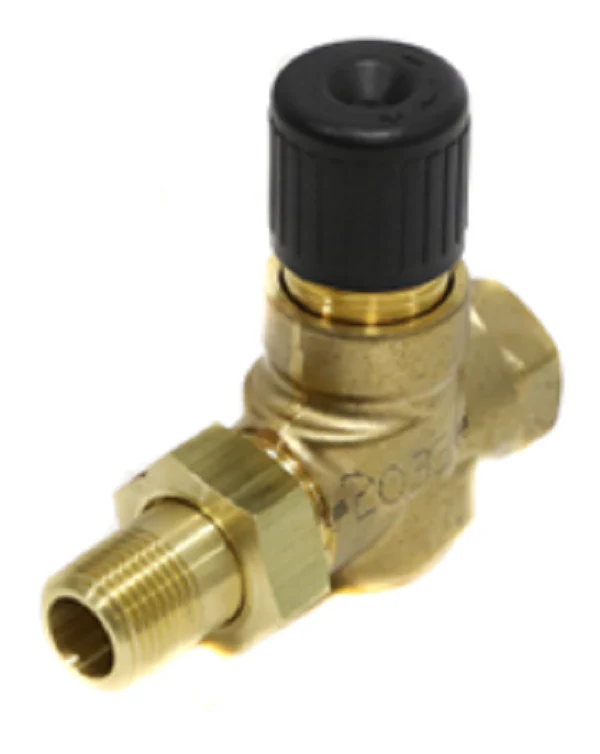

Siemens Building Technology 599-02033 Valve
The Siemens Building Technology 599-02033 is a high-performance Powermite MT Series globe valve engineered for precise control in terminal unit applications. This 2-way normally open valve features a 1/2-inch NPT x Union Male connection and a 0.63 Cv capacity, designed with a modified equal percentage flow characteristic to ensure stable modulation in hot or chilled water systems and glycol solutions up to 50%. Built for the rigors of commercial HVAC environments, the forged brass body and brass trim meet ANSI Class 250 pressure ratings, supporting a wide medium temperature range from 35°F to 250°F. The direct-coupled universal bonnet allows for seamless integration with Siemens electronic or pneumatic actuators with a 5.5 mm stroke, facilitating tool-free installation and consistent ANSI Class IV leakage protection. This HVAC zone control valve is an essential component for contractors requiring reliable flow regulation and long-term durability in closed-loop hydronic systems.
Key Benefits- Precise Flow Control: The 0.63 Cv modified equal percentage design provides superior throttling for terminal unit heating and cooling.
- Contractor-Friendly Installation: Features a direct-coupled bonnet and NPT x Union Male ends for fast mounting without specialized tools.
- Rugged Construction: Forged brass body rated for ANSI 250 ensures reliability under high static pressures and varied temperatures.
- Actuator Compatibility: Optimized for use with Siemens Powermite MT Series pneumatic and electronic actuators.
- Enhanced Tight Close-off: Maintains ANSI Class IV leakage standards to prevent energy waste in the "off" position.
What actuators are compatible with the Siemens 599-02033?
This valve body is designed to work with Siemens MT Series actuators, including the SSC, SSA, and SQS electronic series or the 2-inch pneumatic series with a 7/32-inch stroke.
Can this valve be used for steam applications?
The standard brass trim version is primarily rated for water and glycol. For low-pressure steam up to 15 psi, a model with stainless steel trim is typically recommended.
What is the maximum operating temperature for this unit?
The 599-02033 is rated for fluid temperatures ranging from 35°F up to 250°F, making it suitable for most hydronic reheat and cooling coil applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
