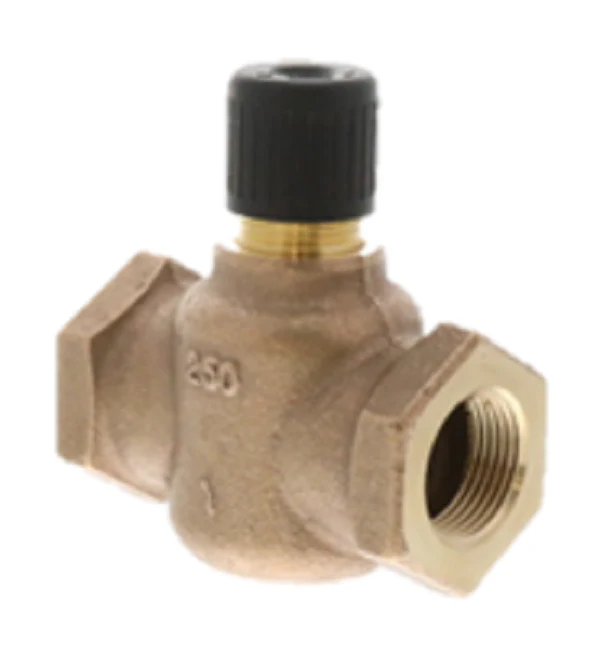

Siemens Building Technology 599-02029 Valve
The Siemens Building Technology 599-02029 Valve is a 1-inch, 2-way normally closed globe valve designed for precision modulation in demanding terminal unit applications. Built with a rugged forged brass body and stainless steel trim, this MT Series valve body is rated for ANSI Class 250 pressure requirements. It features a 10 Cv flow coefficient with an equal percentage flow characteristic, making it ideal for the control of hot or chilled water, 50% glycol solutions, and low-pressure steam up to 15 psi. The direct-coupled universal bonnet allows for tool-free installation of pneumatic or electronic actuators with a 7/32-inch stroke. With NPT threaded connections and a 100:1 rangeability, this valve ensures stable heat transfer and tight close-off in fan coil units, convectors, and reheat coils. The stainless steel stem and metal-to-metal seat design deliver ANSI Class IV leakage protection, ensuring reliable performance in commercial HVACR systems.
Key Benefits:- Universal Actuator Compatibility: Integrates seamlessly with MT Series electronic or pneumatic actuators using a standard 5.5mm stroke.
- High-Durability Construction: The combination of a forged brass body and stainless steel trim resists corrosion and handles temperature ranges from 35°F to 250°F.
- Linear Heat Transfer: The equal percentage flow curve mirrors coil characteristics to provide linear thermal output and prevent hunting.
- Reduced Maintenance: Features a direct-coupled bonnet for rapid field replacement and ANSI Class IV leakage rating to minimize energy loss.
- Can this valve be used for steam applications? Yes, the stainless steel trim makes the 599-02029 suitable for saturated steam applications up to 15 psi.
- Which actuators are compatible with this valve body? This normally closed valve is compatible with Siemens MT Series actuators, including SFA, SFP, SSA, and SSP electronic series or pneumatic equivalents providing 67 lbf.
- What is the close-off pressure rating? The close-off rating depends on the selected actuator, but the ANSI Class 250 body supports high-pressure HVAC environments.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
