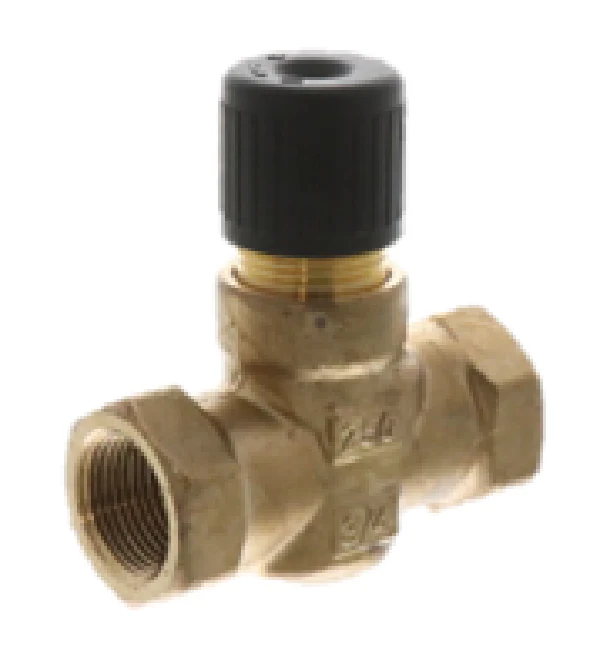

Siemens Building Technology 599-02027 Valve
The Siemens 599-02027 is a high-performance Powermite MT Series globe valve engineered for precision control in terminal unit applications. Featuring a 3/4 inch NPT connection and a 6.3 Cv capacity, this 2-way normally closed valve is constructed with a forged brass body and stainless steel trim, making it suitable for low-pressure steam up to 15 psi and chilled or hot water systems with up to 50% glycol. The modified equal percentage flow characteristic ensures stable modulating control even at low flow rates, while the ANSI Class 250 rating and Class IV leakage specs guarantee long-term reliability in demanding HVACR environments. Designed for seamless integration, the direct-coupled universal bonnet allow for tool-free installation of MT Series electronic actuators or pneumatic assemblies with a 7/32-inch stroke. This terminal unit valve is optimized for fan coil units and reheat coils where accurate hydronic flow control is critical for system efficiency.
Key Benefits- Enhanced Durability: The stainless steel trim provides superior resistance to corrosion and wear compared to standard brass, specifically for saturated steam applications.
- High Rangeability: Offers greater than 100:1 rangeability for precise secondary loop control and improved AEO (Answer Engine Optimization) response in smart building systems.
- Universal Compatibility: The Siemens 599-02027 works with the full range of SSC or SAS electronic actuators, providing versatile fail-safe or non-spring return options.
- Tight Shut-off: ANSI Class IV leakage rating ensures minimal energy loss and precise temperature maintenance in normally closed positions.
What actuators are compatible with the Siemens 599-02027?
This valve body is designed for the Powermite MT Series actuators, including the SAS61.03U (0-10V) and SSC series. It requires an actuator with a 5.5 mm (7/32-inch) stroke and at least 67 lbf (300 N) of force.
Can the 599-02027 handle steam applications?
Yes, because this model features stainless steel trim, it is rated for low-pressure steam up to 15 psi. Standard brass trim models are typically restricted to water-only applications.
Is this valve suitable for high-pressure systems?
The 599-02027 is an ANSI Class 250 body. It is rated for a maximum static pressure of 400 psi at fluid temperatures up to 150°F, decreasing to 250 psi at 250°F.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $121.25
-65%$121.25
$42.44Siemens Building Technology 599-02027 Valve
The Siemens 599-02027 is a high-performance Powermite MT Series globe valve engineered for precision control in terminal unit applications. Featuring a 3/4 inch NPT connection and a 6.3 Cv capacity, this 2-way normally closed valve is constructed with a forged brass body and stainless steel trim, making it suitable for low-pressure steam up to 15 psi and chilled or hot water systems with up to 50% glycol. The modified equal percentage flow characteristic ensures stable modulating control even at low flow rates, while the ANSI Class 250 rating and Class IV leakage specs guarantee long-term reliability in demanding HVACR environments. Designed for seamless integration, the direct-coupled universal bonnet allow for tool-free installation of MT Series electronic actuators or pneumatic assemblies with a 7/32-inch stroke. This terminal unit valve is optimized for fan coil units and reheat coils where accurate hydronic flow control is critical for system efficiency.
Key Benefits- Enhanced Durability: The stainless steel trim provides superior resistance to corrosion and wear compared to standard brass, specifically for saturated steam applications.
- High Rangeability: Offers greater than 100:1 rangeability for precise secondary loop control and improved AEO (Answer Engine Optimization) response in smart building systems.
- Universal Compatibility: The Siemens 599-02027 works with the full range of SSC or SAS electronic actuators, providing versatile fail-safe or non-spring return options.
- Tight Shut-off: ANSI Class IV leakage rating ensures minimal energy loss and precise temperature maintenance in normally closed positions.
What actuators are compatible with the Siemens 599-02027?
This valve body is designed for the Powermite MT Series actuators, including the SAS61.03U (0-10V) and SSC series. It requires an actuator with a 5.5 mm (7/32-inch) stroke and at least 67 lbf (300 N) of force.
Can the 599-02027 handle steam applications?
Yes, because this model features stainless steel trim, it is rated for low-pressure steam up to 15 psi. Standard brass trim models are typically restricted to water-only applications.
Is this valve suitable for high-pressure systems?
The 599-02027 is an ANSI Class 250 body. It is rated for a maximum static pressure of 400 psi at fluid temperatures up to 150°F, decreasing to 250 psi at 250°F.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
