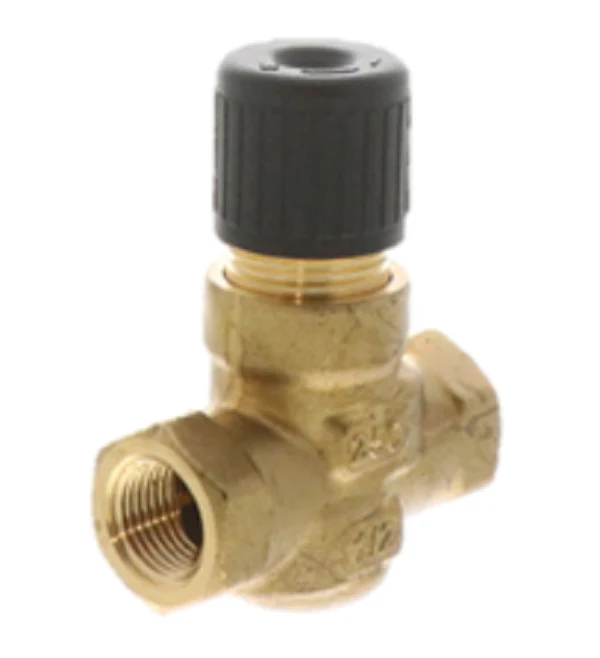

Siemens Building Technology 599-02019 Valve
The Siemens 599-02019 is a 2-way normally closed globe valve engineered for precise control in HVAC applications involving hot water, chilled water, or low-pressure steam. This 1/2 inch NPT valve features a 1.0 Cv rating with an equal percentage flow characteristic, ensuring stable modulation and linear heat output across varied load conditions. Built with a forged brass body and stainless steel trim, the 599-02019 is designed to resist corrosion and handle high-pressure drops without premature seat wear. Contractors frequently specify this model for its compatibility with Siemens Powermite 599 series actuators, providing a reliable solution for terminal units, reheat coils, and small air handlers. The ANSI Class 250 pressure rating and tight shut-off capabilities prevent leakage in the closed position, maintaining system efficiency. Optimized for hydronic control, this normally closed valve simplifies troubleshooting by returning to a safe state during power loss when paired with appropriate spring-return actuators.
Technical Benefits- Enhanced Durability: The stainless steel trim prevents erosion and wire-drawing common in high-velocity steam applications.
- Precise Modulation: An equal percentage plug profile allows for superior control at low flow rates, preventing hunting in the control loop.
- Versatile Media Handling: Suitable for water/glycol solutions up to 50% and saturated steam up to 15 psi.
- Universal Compatibility: Standard 1/2" NPT female connections allow for seamless integration into existing commercial piping systems.
What actuators are compatible with the Siemens 599-02019?
This valve body is designed for use with the Siemens SSC, SSC, and SQS series electronic actuators, allowing for proportional or two-position control.
Can this valve be installed in a horizontal orientation?
While the valve can be mounted in various positions, it is recommended to install the actuator above the valve body to prevent moisture or debris from entering the motor assembly.
What is the maximum operating temperature for this model?
The 599-02019 is rated for medium temperatures ranging from 35°F to 250°F for water and up to 15 psi for steam applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
