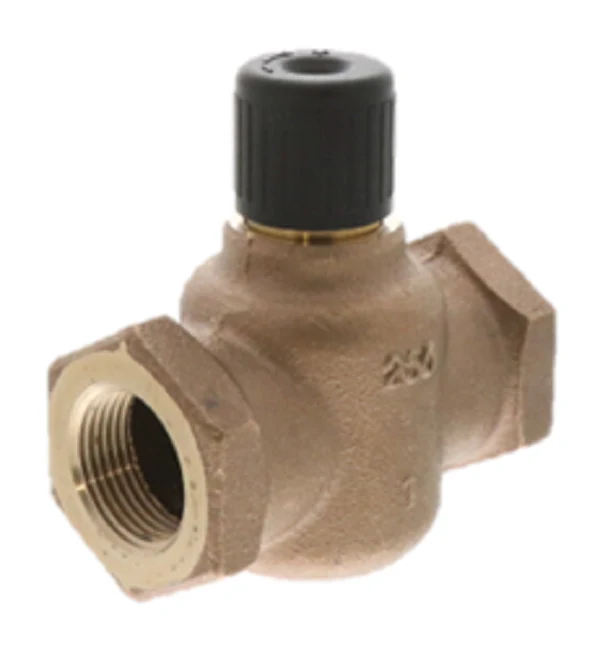

Siemens Building Technology 599-02014 Valve
The Siemens Building Technology 599-02014 Valve is a robust 1-inch 2-way normally closed globe valve designed for precision control in terminal unit applications. Featuring a 10 Cv equal percentage flow characteristic, this valve ensures linear control of hot or chilled water, as well as glycol solutions up to 50%. The forged brass body and brass trim provide exceptional durability in high-demand HVAC environments, supporting an ANSI Class 250 pressure rating and temperatures from 35°F to 250°F.
As part of the Powermite MT Series, the Siemens 599-02014 features a direct-coupled universal bonnet that allows for tool-free installation of compatible electronic or pneumatic actuators. With a 7/32-inch stroke and ANSI Leakage Class IV rating, it delivers reliable tight shut-off for fan coils, baseboard radiation, and reheat coils. This NPT-threaded valve is engineered for seamless integration into commercial hydronic systems, offering high rangeability and consistent performance across varying pressure drops.
Key Benefits- Optimized Flow Control: The 10 Cv modified equal percentage plug design prevents hunting and provides stable temperature regulation.
- Rugged Construction: A forged brass valve body coupled with brass trim resists corrosion and handles modern system pressures.
- Simplified Maintenance: Direct-coupled bonnet enables quick actuator swaps without site tools or system draining.
- Media Versatility: Suitable for low-pressure steam (up to 15 psi with proper trim) and standard water-glycol mixtures.
What actuators are compatible with the 599-02014?
This valve is designed for use with Siemens SFA/P, SSA/P, and SSC series actuators that deliver at least 67 lbf of force.
Can this valve be field-repaired?
Yes, the packing can be replaced using the 599-03394 gasket kit or 599-03390 packing cartridge without removing the body from the line.
What is the maximum pressure for this model?
The body is rated for ANSI Class 250, supporting static pressures up to 400 psi at standard temperatures.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
