Siemens Building Technology 599-02012 Valve

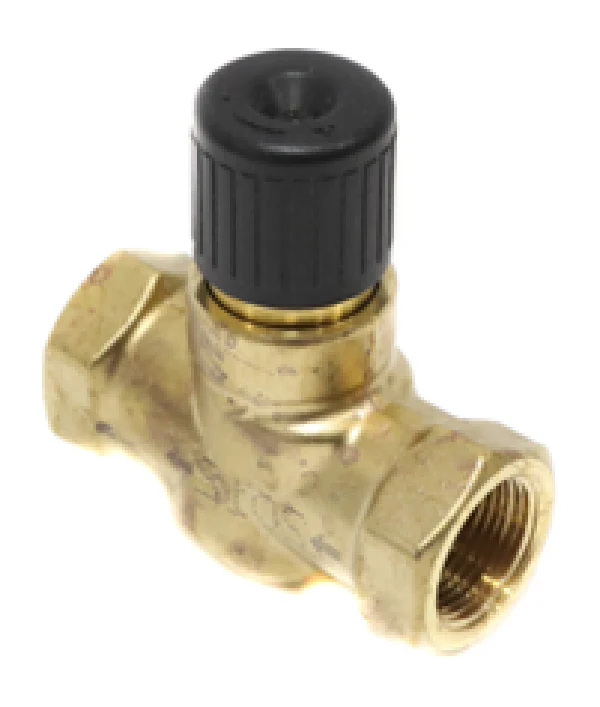

The Siemens Building Technology 599-02012 is a professional-grade 2-way normally closed globe valve designed for precision control in terminal unit applications. Built with a heavy-duty forged brass body and brass trim, this 3/4" NPT valve is engineered for high-demand HVAC systems utilizing hot water, chilled water, or 50% glycol solutions. For contractors requiring accurate modulation, the unit features a 6.3 Cv flow coefficient with a modified equal percentage characteristic, ensuring stable heat transfer across various load conditions. The ANSI Class 250 rating and Class IV leakage performance provide a reliable close-off up to 200 psi when paired with compatible Siemens Powermite MT Series pneumatic or electronic actuators. This valve body utilizes a direct-coupled universal bonnet, allowing for tool-free actuator mounting to streamline field installations and maintenance cycles.
Key Benefits- Optimized Flow Control: The 6.3 Cv rating with a modified equal percentage curve provides superior linear heat output in hydronic loops.
- Rugged Construction: Features a forged brass body and brass trim, rated for media temperatures ranging from 35°F to 250°F.
- Simplified Integration: Designed for seamless NPT female connections and compatibility with 7/32-inch (5.5 mm) stroke actuators.
- High Pressure Reliability: ANSI Class 250 body provides the structural integrity needed for high-rise or commercial piping systems.
- Leakage Prevention: Meets ANSI Leakage Class IV standards, ensuring minimal energy loss during the off-cycle.
Which actuators are compatible with the 599-02012?
This valve body is designed specifically for use with the Siemens Powermite MT Series terminal unit actuators, including both pneumatic (SFA/P) and electronic (SSA/P, SSC, SAS) models with a 5.5mm stroke.
Can this valve be used in steam applications?
This specific model features brass trim and is rated primarily for water and glycol. For low-pressure steam service up to 15 psi, a stainless steel trim variant is typically recommended for improved longevity.
What is the failure state of this valve?
The 599-02012 is a normally closed (NC) valve body. Upon loss of power or signal to the actuator, the internal spring mechanism returns the valve to the closed position to prevent flow.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
