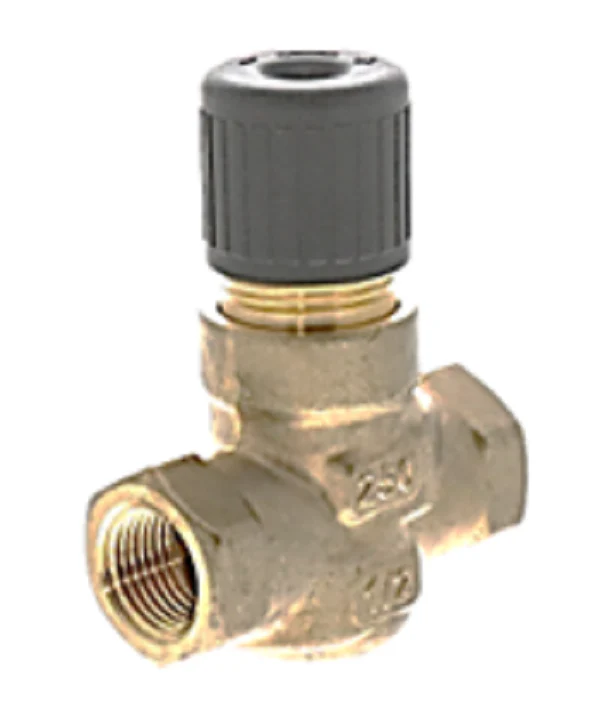

Siemens Building Technology 599-02006 Valve
The Siemens Building Technology 599-02006 is a high-performance 2-way normally closed globe valve designed for demanding terminal unit applications in HVAC systems. Featuring a 1/2 inch NPT female-to-female connection, this MT Series valve body is engineered with a durable forged brass body and robust brass trim. With a 1.6 Cv capacity and modified equal percentage flow characteristics, it provides precise linear-to-proportional control for hot water, chilled water, or low-pressure steam units. Built to ANSI Class 250 standards, the 599-02006 maintains tight Class IV leakage rates (0.01% of Cv) even under high pressure. This Powermite valve utilizes a 7/32-inch (5.5 mm) stroke and is fully compatible with both pneumatic and electronic actuators, such as the SAS or SSC series. The integrated 10-15 psi spring range ensures reliable fail-safe operation in the closed position, making it a staple for commercial zone control and radiant heating retrofits.
Key Benefits for HVAC Contractors:
- Universal Compatibility: Seamlessly pairs with Siemens SAS, SSC, and SQS actuators, as well as 2-inch pneumatic equivalents.
- Industrial-Grade Casting: The forged brass body rated for ANSI 250 ensures long-term structural integrity in high-pressure hydronic loops.
- Precision Flow Control: The modified equal percentage plug design prevents hunting and stabilizes temperature in terminal units.
- No-Tool Actuator Mounting: The direct-coupled universal bonnet allows for rapid actuator installation or replacement without the need for specialized tools.
- Wide Temperature Range: Suited for media temperatures from 35°F to 250°F, covering a broad spectrum of HVAC zone valve applications.
Common Technical Questions:
What is the maximum close-off pressure for this valve?
The 599-02006 is rated for 250 PSI close-off pressure when paired with a compatible electronic or pneumatic actuator, ensuring shut-off against high pump heads.
Can this valve be used for steam service?
This specific model with brass trim is primarily rated for water applications. For low-pressure steam service (up to 15 psig), Siemens typically recommends a stainless steel trim alternative.
Is the spring located in the actuator or the valve body?
Unique to the Powermite MT Series, the internal spring is located within the valve body itself, which simplifies pneumatic sequencing and actuator selection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $63.25
-65%$63.25
$22.14Siemens Building Technology 599-02006 Valve
The Siemens Building Technology 599-02006 is a high-performance 2-way normally closed globe valve designed for demanding terminal unit applications in HVAC systems. Featuring a 1/2 inch NPT female-to-female connection, this MT Series valve body is engineered with a durable forged brass body and robust brass trim. With a 1.6 Cv capacity and modified equal percentage flow characteristics, it provides precise linear-to-proportional control for hot water, chilled water, or low-pressure steam units. Built to ANSI Class 250 standards, the 599-02006 maintains tight Class IV leakage rates (0.01% of Cv) even under high pressure. This Powermite valve utilizes a 7/32-inch (5.5 mm) stroke and is fully compatible with both pneumatic and electronic actuators, such as the SAS or SSC series. The integrated 10-15 psi spring range ensures reliable fail-safe operation in the closed position, making it a staple for commercial zone control and radiant heating retrofits.
Key Benefits for HVAC Contractors:
- Universal Compatibility: Seamlessly pairs with Siemens SAS, SSC, and SQS actuators, as well as 2-inch pneumatic equivalents.
- Industrial-Grade Casting: The forged brass body rated for ANSI 250 ensures long-term structural integrity in high-pressure hydronic loops.
- Precision Flow Control: The modified equal percentage plug design prevents hunting and stabilizes temperature in terminal units.
- No-Tool Actuator Mounting: The direct-coupled universal bonnet allows for rapid actuator installation or replacement without the need for specialized tools.
- Wide Temperature Range: Suited for media temperatures from 35°F to 250°F, covering a broad spectrum of HVAC zone valve applications.
Common Technical Questions:
What is the maximum close-off pressure for this valve?
The 599-02006 is rated for 250 PSI close-off pressure when paired with a compatible electronic or pneumatic actuator, ensuring shut-off against high pump heads.
Can this valve be used for steam service?
This specific model with brass trim is primarily rated for water applications. For low-pressure steam service (up to 15 psig), Siemens typically recommends a stainless steel trim alternative.
Is the spring located in the actuator or the valve body?
Unique to the Powermite MT Series, the internal spring is located within the valve body itself, which simplifies pneumatic sequencing and actuator selection.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
