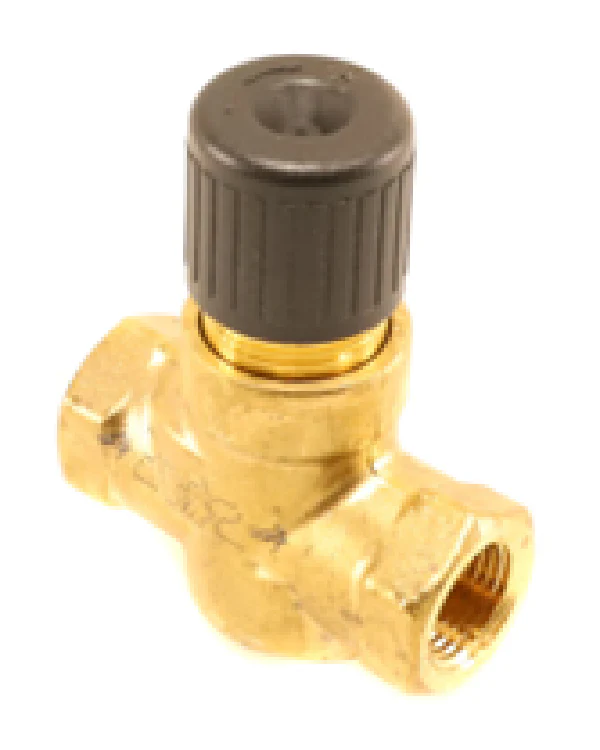

Siemens Building Technology 599-02002 Valve
The Siemens Building Technology 599-02002 Valve is a Powermite MT Series globe valve designed for high-performance fluid control in terminal units like fan coils, reheat coils, and induction units. This 1/2 inch NPT 2-way normally closed valve features a 0.63 Cv with a modified equal percentage flow characteristic, ensuring linear heat transfer and precise control over hot or chilled water or 50% glycol solutions. Built with a forged brass body and brass trim, this ANSI Class 250 rated valve body is engineered for rugged reliability in commercial HVACR applications. The direct-coupled universal bonnet allows for seamless integration with electronic or pneumatic actuators without the need for specialized tools. With a 7/32-inch stroke and an ANSI Leakage Class IV rating, the 599-02002 provides tight shut-off and consistent pressure handling up to 250°F, making it a staple for contractors prioritizing long-term system stability.
Key Benefits
- Precise Flow Control: The 0.63 Cv modified equal percentage design prevents hunting and improves system efficiency in low-flow terminal applications.
- Simplified Installation: 1/2" NPT female-to-female connections and a tool-free universal bonnet streamline field replacement and internal component access.
- Industrial-Grade Durability: Constructed with a forged brass body and EPDM O-ring packing to withstand medium temperatures ranging from 35°F to 250°F.
- Actuator Versatility: Fully compatible with Siemens SFA/SFP, SSA/SSP, and SSC series actuators, providing flexible control options for different building automation requirements.
Common Questions
Can the 599-02002 be used for steam applications?
No, this specific model features brass trim and is rated for water and glycol. For low-pressure steam applications (up to 15 psi), a stainless steel trim version is required.
What is the fail-safe position of this valve body?
The 599-02002 is a normally closed valve body; however, the actual fail-safe performance depends on the type of MT series actuator installed on the bonnet.
Is a special tool needed to mount the actuator?
No, the Powermite MT Series uses a direct-coupled design that allows for manual installation and secure attachment without specialized HVAC tools.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
