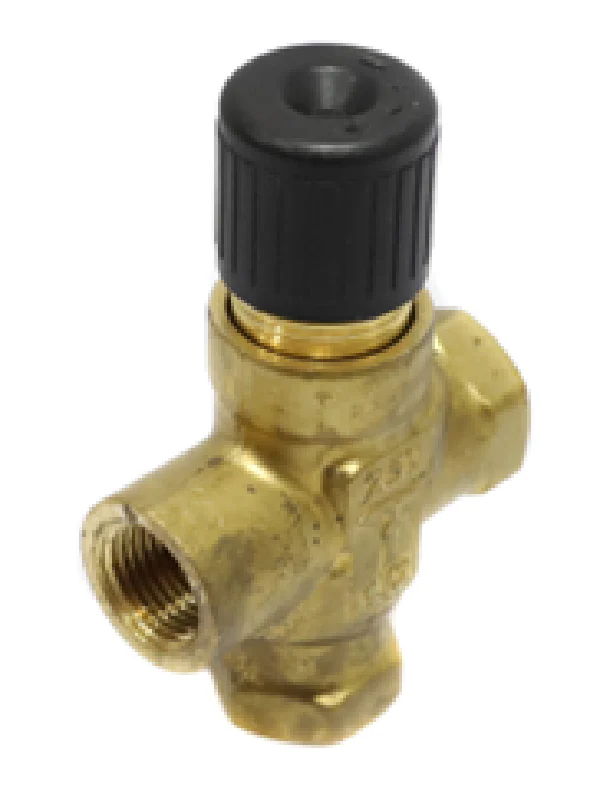

Siemens Building Technology 599-01133 Valve
The Siemens 599-01133 is a 1/2 inch 3-way mixing valve designed for precision control in terminal unit applications. Built with a forged brass body and brass trim, this Powermite MZ Series valve is engineered to handle hot or chilled water and up to 50% water-glycol solutions. With a 0.63 Cv rating and a linear flow characteristic, it provides stable modulation for fan coil units, baseboard radiation, and small reheat coils. The assembly features NPT female connections and an ANSI Class 250 pressure rating, ensuring durability in demanding hydronic systems. This valve is designed for a 7/32-inch stroke and is compatible with Siemens SSB series actuators, allowing for a direct-coupled installation without specialized tools. Its ANSI Class IV leakage rating ensures tight shut-off and efficiency. This 1/2" brass globe valve is a reliable choice for contractors focusing on HVAC zone control and hydronic mixing requirements.
Key Benefits- Precise Flow Control: Featuring a 0.63 Cv and linear flow, this valve ensures accurate temperature regulation in small-scale HVAC terminal units.
- Rugged Construction: The forged brass body combined with brass trim provides excellent corrosion resistance and an ANSI 250 pressure class rating.
- Ease of Installation: Designed with a direct-coupled bonnet for tool-free actuator mounting, reducing labor time on the job site.
- Reliable Sealing: Achieves ANSI Class IV leakage (0.01% of Cv) for effective close-off and energy savings in mixing applications.
What is the maximum fluid temperature for the Siemens 599-01133?
This valve is rated for media temperatures ranging from 35°F to 250°F, making it suitable for both chilled water and high-temperature heating systems.
Which actuators are compatible with this 3-way mixing valve?
The 599-01133 is optimized for use with Siemens SSB or SSC series electronic actuators that utilize a 5.5mm (7/32-inch) stroke.
Can this valve be used for diverting applications?
While designated as a 3-way mixing valve, its primary internal geometry is optimized for mixing. Always verify flow direction arrows on the forged brass body to ensure proper piped configuration.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $59.84
-65%$59.84
$20.94Siemens Building Technology 599-01133 Valve
The Siemens 599-01133 is a 1/2 inch 3-way mixing valve designed for precision control in terminal unit applications. Built with a forged brass body and brass trim, this Powermite MZ Series valve is engineered to handle hot or chilled water and up to 50% water-glycol solutions. With a 0.63 Cv rating and a linear flow characteristic, it provides stable modulation for fan coil units, baseboard radiation, and small reheat coils. The assembly features NPT female connections and an ANSI Class 250 pressure rating, ensuring durability in demanding hydronic systems. This valve is designed for a 7/32-inch stroke and is compatible with Siemens SSB series actuators, allowing for a direct-coupled installation without specialized tools. Its ANSI Class IV leakage rating ensures tight shut-off and efficiency. This 1/2" brass globe valve is a reliable choice for contractors focusing on HVAC zone control and hydronic mixing requirements.
Key Benefits- Precise Flow Control: Featuring a 0.63 Cv and linear flow, this valve ensures accurate temperature regulation in small-scale HVAC terminal units.
- Rugged Construction: The forged brass body combined with brass trim provides excellent corrosion resistance and an ANSI 250 pressure class rating.
- Ease of Installation: Designed with a direct-coupled bonnet for tool-free actuator mounting, reducing labor time on the job site.
- Reliable Sealing: Achieves ANSI Class IV leakage (0.01% of Cv) for effective close-off and energy savings in mixing applications.
What is the maximum fluid temperature for the Siemens 599-01133?
This valve is rated for media temperatures ranging from 35°F to 250°F, making it suitable for both chilled water and high-temperature heating systems.
Which actuators are compatible with this 3-way mixing valve?
The 599-01133 is optimized for use with Siemens SSB or SSC series electronic actuators that utilize a 5.5mm (7/32-inch) stroke.
Can this valve be used for diverting applications?
While designated as a 3-way mixing valve, its primary internal geometry is optimized for mixing. Always verify flow direction arrows on the forged brass body to ensure proper piped configuration.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
