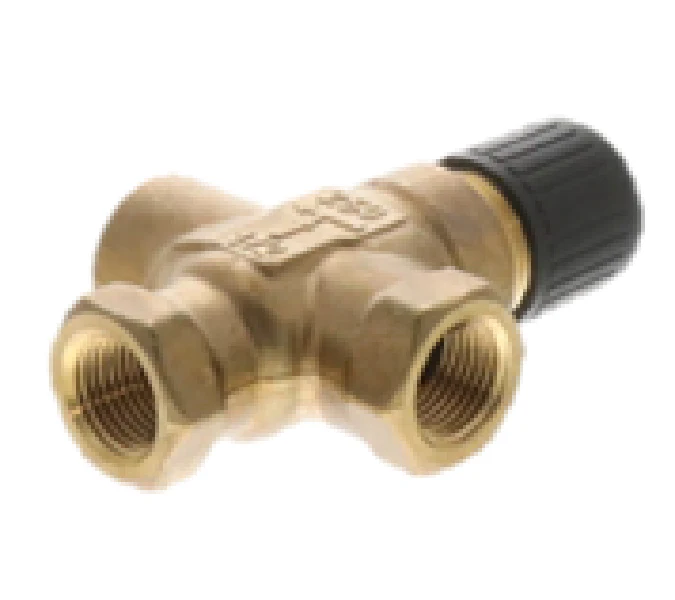

Siemens Building Technology 599-01132 Valve Assembly
The Siemens Building Technology 599-01132 is a precision-engineered 3-way mixing valve designed for demanding hydronic terminal unit applications. Built with a forged brass body and robust brass trim, this 1/2 inch NPT globe valve assembly delivers a 0.4 Cv flow coefficient, making it ideal for the high-resolution control of hot or chilled water in fan coil units, radiators, and baseboard heating. As part of the Powermite 599 MZ Series, this valve features a 7/32-inch stroke and is optimized for use with SSB or SSA series electronic actuators. The linear flow characteristic ensures stable temperature regulation, while the ANSI Class 250 pressure rating and ANSI Class IV leakage standard provide the reliability required in commercial HVAC environments. Contractors can rely on the direct-coupled universal bonnet for tool-free actuator integration, simplifying service and installation in tight mechanical spaces.
Key Benefits for HVAC Professionals:- Precision Flow Control: The 0.4 Cv rating and linear flow design allow for accurate mixing in low-flow terminal applications.
- Industrial-Grade Construction: Features a forged brass body, stainless steel stem, and EPDM O-ring packing for long-term durability in closed-loop systems.
- High Pressure Performance: Rated for ANSI Class 250, ensuring safe operation at temperatures from 35°F to 250°F.
- Simplified Installation: The 1/2" NPT female-to-female connections and universal bonnet design facilitate rapid field assembly with compatible Siemens actuators.
- Proven Reliability: Meets ANSI Class IV leakage specifications (0.01% of Cv) for superior close-off performance and system efficiency.
- What actuators are compatible with the 599-01132? This valve is designed to pair perfectly with Siemens SSB or MZ series actuators that utilize a 5.5mm stroke and provide at least 45 lb (200 N) of force.
- Can this valve be used for diverting applications? No, this is a 3-way mixing valve. For diverting applications, ensure you select the appropriate diverting-specific model to maintain system flow patterns.
- What is the maximum glycol concentration allowed? This unit is rated for use with water or water-glycol solutions containing up to 50% anti-freeze.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
