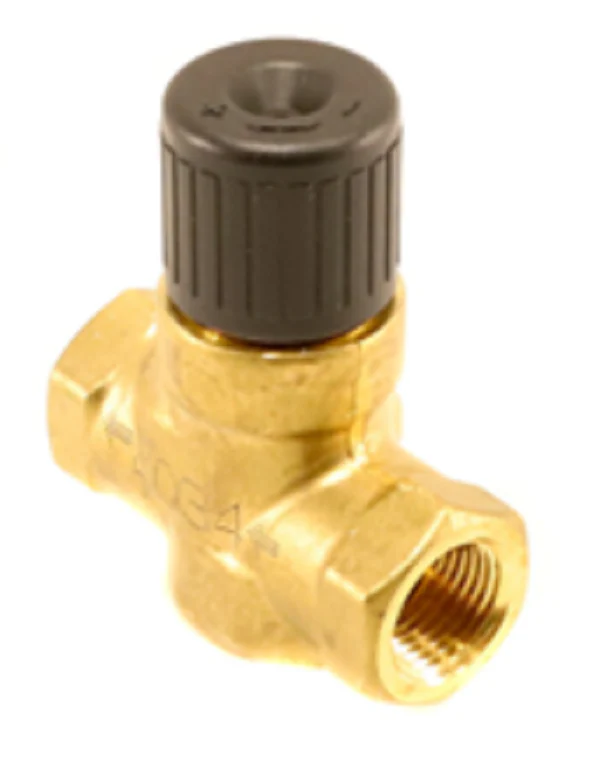

Siemens Building Technology 599-01119 Valve
The Siemens 599-01119 is a heavy-duty, 1/2-inch normally open globe valve engineered specifically for terminal unit applications, including fan coils, baseboard radiation, and reheat coils. As a veteran-grade component in the Powermite 599 MZ Series, this valve features a forged brass body and brass trim designed to withstand the rigors of commercial HVAC settings. With a 1.0 Cv and a modified equal percentage flow characteristic, it provides highly precise linear heat transfer for water and glycol-based systems. This 2-way valve is rated for ANSI Class 250 service, handling medium temperatures from 35°F to 250°F. The direct-coupled universal bonnet allows for seamless integration with SSB series electronic actuators, requiring no specialized tools for field mounting. For contractors, the internal NPT threads ensure a reliable, leak-resistant connection in high-pressure hydronic circuits.
Key Benefits for the Contractor- High-Precision Control: The 1.0 Cv rating combined with modified equal percentage flow ensures stable temperature regulation in small-bore terminal units.
- Durable Construction: Features a forged brass body (C37700) and stainless steel stem (ASTM A582 Type 303) for long-term resistance to corrosion and scaling.
- Field Interchangeability: The universal bonnet design simplifies actuator replacement or upgrades without needing to break the piping.
- Reliable Seaing: Rated for ANSI Leakage Class IV, providing a maximum leakage of only 0.01% of the rated Cv.
- High Pressure Handling: Built for ANSI Class 250 applications, providing a robust close-off solution for commercial hydronic loops.
- What actuators are compatible with the 599-01119? This valve body is specifically designed to work with Siemens SSB actuators, but its universal bonnet also supports a range of compatible Powermite 599 series electronic and pneumatic drivers.
- Can this valve be used for steam applications? The 599-01119 is optimized for water and water-glycol solutions (up to 50%). For steam service, please verify medium temperature and seal compatibility before installation.
- How do I ensure proper flow direction? The forged brass body includes a cast-in arrow; always install the valve so that flow follows the direction of this arrow to prevent water hammer and ensure proper close-off.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
