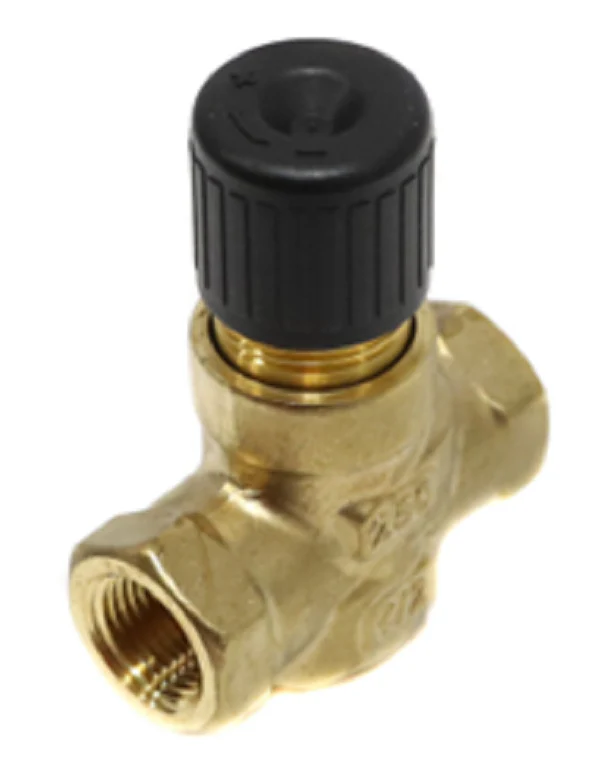

Siemens Building Technology 599-01106 Valve
For field technicians and mechanical contractors, the Siemens 599-01106 is an industry-standard 1/2 inch 2-way normally closed globe valve engineered for demanding hydronic applications. This Powermite 599 MZ Series valve body features a rugged forged brass body with brass trim, ensuring reliable performance when regulating hot or chilled water or water-glycol solutions up to 50%. With a 1.6 Cv and modified equal percentage flow characteristic, it provides precise throttling control for terminal units, including fan coils, baseboards, and reheat coils. The direct-coupled universal bonnet allows for a "no-tools-required" installation, seamlessly integrating with SSA or SSB series actuators. Built to ANSI Class 250 pressure standards, this normally closed globe valve maintains a Class IV leakage rating, ensuring tight shut-off and system efficiency. The female NPT connections facilitate a secure, standard fit into existing piping, making it a dependable choice for maintaining 0.01% of Cv leakage control in zone-level HVACR environments.
Key Benefits:- Precision Control: Features a 1.6 Cv rating and equal percentage flow for accurate modulation in HVAC zone control applications.
- Rugged Construction: The forged brass body and brass trim are designed for ANSI Class 250 environments, handling temperatures from 35°F to 250°F.
- Easy Installation: The direct-coupled bonnet design eliminates the need for specialized tools, reducing labor time during actuator mounting.
- Efficient Operation: Meets ANSI Leakage Class IV standards, preventing energy waste through 0.01% of Cv leakage in the normally closed position.
Which actuators are compatible with the Siemens 599-01106?
This valve body is specifically designed to work with Siemens MZ Series electronic actuators, such as the SSB or SSA series, which provide the required 7/32-inch (5.5 mm) stroke and 45 lb (200 N) of minimum force.
Can this valve be used for steam applications?
No, the 599-01106 is optimized for hot and chilled water or water-glycol solutions. For steam requirements, consult the specifications for the stainless steel trim variants within the Powermite series.
What is the maximum pressure rating for this valve?
The valve is rated for ANSI Class 250, making it suitable for high-pressure commercial piping systems where tight close-off and durability are essential.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
