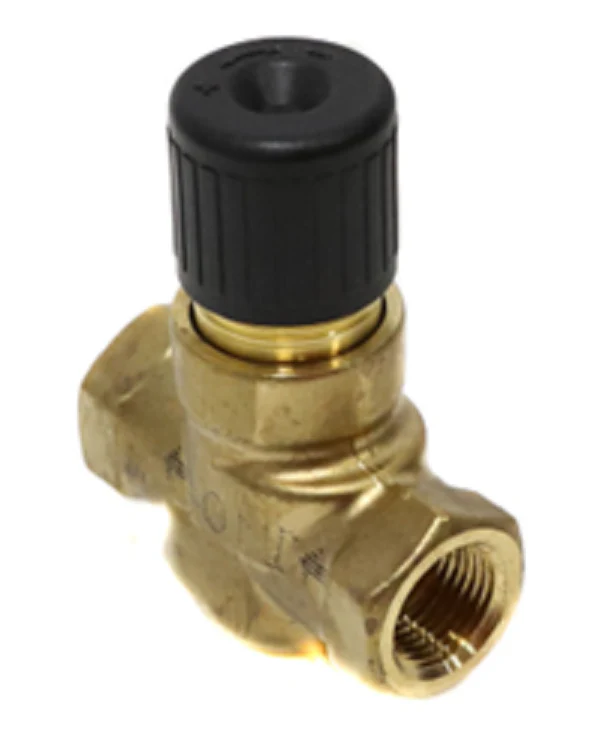

Siemens Building Technology 599-01104 Valve
For hydraulic control in demanding HVAC systems, the Siemens 599-01104 is a 2-way normally closed globe valve engineered for precision and reliability. Built with a rugged forged brass body and brass trim, this valve is designed for terminal units, including fan coils, baseboard radiation, and reheat coils. It features a 1.0 Cv flow coefficient with a modified equal percentage flow characteristic, ensuring stable modulated control even at low flow rates. This 1/2 inch NPT valve body integrates seamlessly with Siemens MZ series actuators via a direct-coupled universal bonnet, allowing for tool-free installation and easy field maintenance.
The Siemens 599-01104 is rated for ANSI Class 250 service, making it suitable for high-pressure systems with medium temperatures ranging from 35°F to 250°F. Its Normally Closed (NC) configuration provides a default fail-safe position for heating or cooling loops when the actuator is de-energized. With an ANSI Leakage Class IV rating, it minimizes energy loss through bypass leakage, while the stainless steel stem and EPDM O-ring packing ensure a long service life under constant cycling in closed-loop hydronic systems.
Key Benefits for Contractors:- Precise Flow Control: The 1.0 Cv rating with equal percentage flow allows for fine-tuned hydronic balancing and energy-efficient temperature regulation.
- Simplified Installation: The universal bonnet design supports Powermite 599 series actuators, reducing labor time during field assembly.
- High Pressure Durability: Rated for ANSI Class 250, offering superior performance in high-rise or large-scale commercial hydraulic circuits.
- Hydronic Compatibility: Optimized for use with water and water-glycol solutions (up to 50%) in non-potable applications.
Which actuators are compatible with this valve?
The 599-01104 is compatible with Siemens MZ series electronic and pneumatic actuators that feature a 7/32-inch (5.5 mm) stroke, including SSA, SSB, and SFA/P series.
Can this valve be used for steam applications?
No, this specific model features brass trim and is intended for water and water-glycol media. For steam service up to 15 psi, a model with stainless steel trim is required.
What is the maximum pressure differential?
The close-off pressure ratings depend on the specific actuator paired with the valve, but the body itself is rated to ANSI Class 250 standards.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $52.24
-65%$52.24
