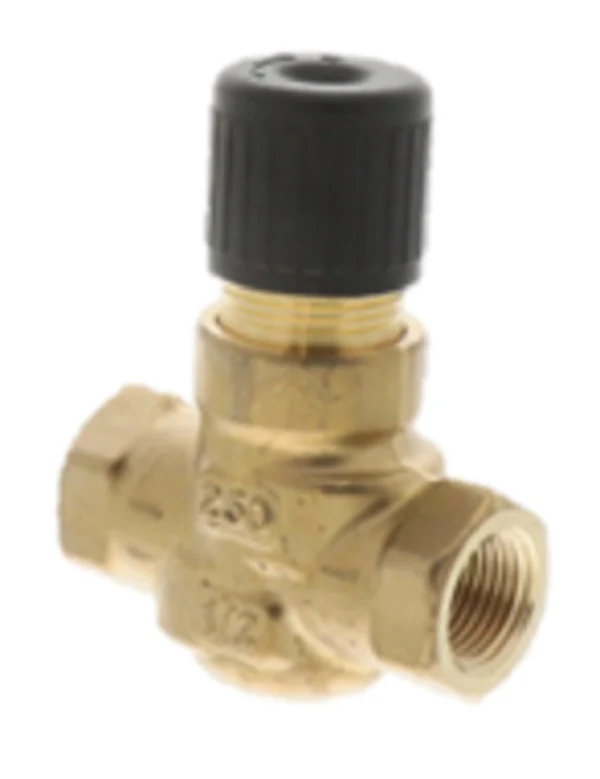

Siemens Building Technology 599-01100 Valve
The Siemens 599-01100 is an industrial-grade 1/2 inch globe valve specifically engineered for high-precision terminal unit applications, including fan coils, induction units, and reheat coils. As a normally closed 2-way valve, it offers a 0.4 Cv flow coefficient, ensuring stable performance in systems requiring tight control of hot or chilled water or 50% water-glycol solutions. Built with a forged brass body and robust brass trim, this Powermite MZ series valve body is rated for ANSI Class 250 service, providing the reliability needed for light-duty commercial HVACR environments where equal percentage flow characteristics are critical for maintaining temperature stability.
Designed for seamless integration, the universal bonnet allows for the direct mounting of Siemens electronic actuators—such as the SSB or SSC series—without the need for additional tools. This NPT threaded globe valve features a 5.5mm (7/32-inch) stroke and maintains an ANSI Class IV leakage rating, ensuring minimal energy loss when the system is in the off position. For contractors and technicians, the compact design and NPT female connections simplify installation in tight mechanical closets and plenum spaces, while the metal-to-metal seat provides a durable seal for long-term operational integrity.
Key Benefits for Technicians:- Precision Flow Control: The 0.4 Cv equal percentage plug provides accurate throttling, preventing hunting and overshoot in low-flow hydronic zones.
- Direct-Coupled Versatility: Features a universal bonnet for tool-free actuator installation, reducing labor time during field assembly or replacement.
- High Pressure Rating: Rated for ANSI Class 250, making it suitable for high-rise terminal unit applications and demanding hydronic circuits.
- Superior Construction: The forged brass C37700 body and EPDM O-ring packing ensure compatibility with varied water chemistries and glycol mixtures.
- Tight Shut-Off: Meets ANSI Leakage Class IV standards, ensuring efficient isolation for energy savings in normally closed configurations.
What actuators are compatible with the Siemens 599-01100?
This valve body is designed to work with the Siemens MZ Series, specifically the SSB and SSC electronic actuators, requiring a 5.5mm stroke and a minimum of 45 lbf (200 N) of force.
Can this valve be used for steam applications?
No, the 599-01100 with brass trim is rated for water and water-glycol solutions up to 250°F. For steam service, a stainless steel trim option within the Siemens globe valve line is required.
How should the 599-01100 be oriented during installation?
The valve must be installed with the flow arrow on the body pointing in the direction of system flow. For maximum reliability, it is recommended to mount the valve with the actuator in the vertical position, though any position between vertical and horizontal is acceptable.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $52.24
-65%$52.24
$18.28Siemens Building Technology 599-01100 Valve
The Siemens 599-01100 is an industrial-grade 1/2 inch globe valve specifically engineered for high-precision terminal unit applications, including fan coils, induction units, and reheat coils. As a normally closed 2-way valve, it offers a 0.4 Cv flow coefficient, ensuring stable performance in systems requiring tight control of hot or chilled water or 50% water-glycol solutions. Built with a forged brass body and robust brass trim, this Powermite MZ series valve body is rated for ANSI Class 250 service, providing the reliability needed for light-duty commercial HVACR environments where equal percentage flow characteristics are critical for maintaining temperature stability.
Designed for seamless integration, the universal bonnet allows for the direct mounting of Siemens electronic actuators—such as the SSB or SSC series—without the need for additional tools. This NPT threaded globe valve features a 5.5mm (7/32-inch) stroke and maintains an ANSI Class IV leakage rating, ensuring minimal energy loss when the system is in the off position. For contractors and technicians, the compact design and NPT female connections simplify installation in tight mechanical closets and plenum spaces, while the metal-to-metal seat provides a durable seal for long-term operational integrity.
Key Benefits for Technicians:- Precision Flow Control: The 0.4 Cv equal percentage plug provides accurate throttling, preventing hunting and overshoot in low-flow hydronic zones.
- Direct-Coupled Versatility: Features a universal bonnet for tool-free actuator installation, reducing labor time during field assembly or replacement.
- High Pressure Rating: Rated for ANSI Class 250, making it suitable for high-rise terminal unit applications and demanding hydronic circuits.
- Superior Construction: The forged brass C37700 body and EPDM O-ring packing ensure compatibility with varied water chemistries and glycol mixtures.
- Tight Shut-Off: Meets ANSI Leakage Class IV standards, ensuring efficient isolation for energy savings in normally closed configurations.
What actuators are compatible with the Siemens 599-01100?
This valve body is designed to work with the Siemens MZ Series, specifically the SSB and SSC electronic actuators, requiring a 5.5mm stroke and a minimum of 45 lbf (200 N) of force.
Can this valve be used for steam applications?
No, the 599-01100 with brass trim is rated for water and water-glycol solutions up to 250°F. For steam service, a stainless steel trim option within the Siemens globe valve line is required.
How should the 599-01100 be oriented during installation?
The valve must be installed with the flow arrow on the body pointing in the direction of system flow. For maximum reliability, it is recommended to mount the valve with the actuator in the vertical position, though any position between vertical and horizontal is acceptable.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
