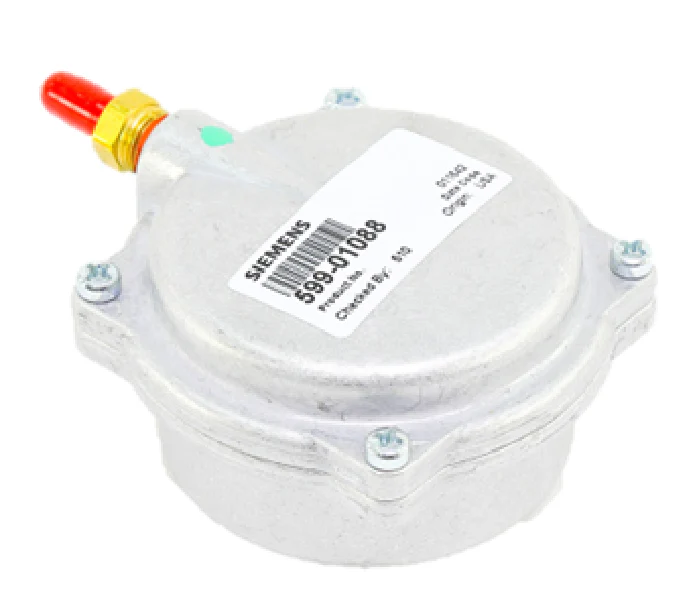

Siemens Building Technology 599-01088 Powermite Actuator
As a seasoned technician, you know that reliability in terminal unit control comes down to the precision of your actuator. The Siemens Building Technology 599-01088 Powermite Actuator is a 2-inch pneumatic valve actuator engineered specifically for the Powermite 599 MT Series. Designed for 1/2-inch to 1-inch terminal unit valves, this unit features a 7/32-inch (5.5 mm) stroke and a 5 psi spring span, ensuring consistent modulation in both hot and chilled water or low-pressure steam applications. The all-metal housing provides a rugged, low-profile footprint ideal for tight plenum spaces, while the 1/8-inch NPT barbed fitting air connection simplifies field integration. One of its standout field advantages is that it freely rotates once mounted, which significantly aids in tubing alignment and reduces mechanical stress on connections. Whether you are performing a pneumatic valve actuator replacement or a new installation, this fail-safe component delivers the 67 lb (300 N) minimum force required for high-performance HVAC zone control.
Key Benefits for the Contractor
- Universal Compatibility: Seamlessly mounts to any Powermite 599 MT Series terminal unit valve body with a 7/32-inch stroke.
- Simplified Installation: The direct-coupled design allows for quick attachment without specialized tools, and the 360-degree rotation facilitates easier pneumatic tubing runs.
- Robust Construction: Built with a durable all-metal housing to withstand standard mechanical room environments and plenum-rated applications.
- Application Versatility: Rated for liquid service and steam applications (up to 15 psi with stainless trim), covering most fan coil and radiation unit needs.
- Reduced Maintenance: The low-profile design and field-proven pneumatic diaphragm technology ensure long-term operational stability with minimal intervention.
Common Questions
What is the fail-safe position for the 599-01088?
This actuator is a spring-return unit. The fail-safe position (Normally Open or Normally Closed) is determined by the specific valve body it is paired with in the Powermite 599 series.
Can I use this actuator with any globe valve?
No, this actuator is specifically designed for Siemens 599 MT Series terminal unit valves. It requires the specialized 7/32-inch stroke and unique bonnet threading found on these Siemens bodies.
Does the unit require a specific orientation when mounting?
It can be mounted in any orientation; however, the ability to rotate the head freely makes it much easier to position the air intake away from obstacles or toward the main supply line.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
