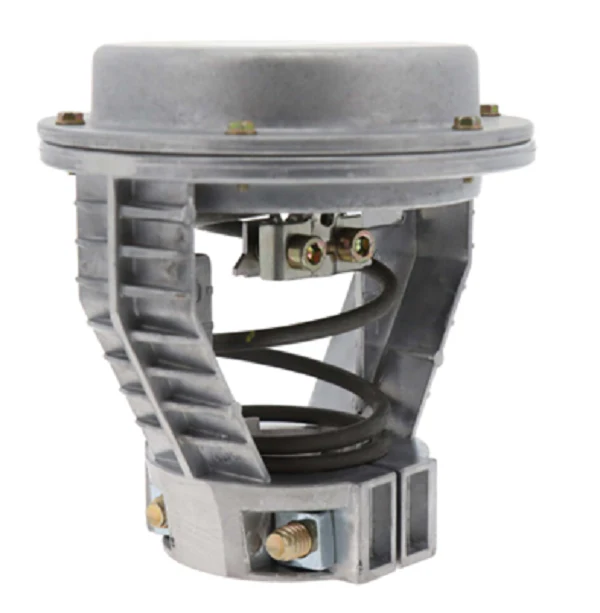

Siemens Building Technology 599-01082 Pneumatic Actuator
The Siemens 599-01082 is a heavy-duty 4-inch pneumatic actuator designed for the precise control of Flowrite 599 Series valves. Engineered by Siemens Building Technology, this direct-acting pneumatic valve actuator features an all-metal housing that ensures long-term structural integrity in demanding HVACR commercial systems. With a calibrated 5-10 PSI spring range and a standard 3/4-inch stroke, it provides the necessary force for reliable seating in both liquid and steam applications. The large diaphragm area is specifically optimized for control accuracy and high-performance pneumatic valve automation, making it a staple for technicians maintaining Siemens Flowrite valves. This industrial pneumatic actuator includes a 1/8-inch NPT air connection and visual position indication, allowing for rapid diagnostics and streamlined field installation. Its rugged construction and fail-safe return functionality ensure consistent operation within pneumatic control loops, even in high-ambient temperature environments up to 180°F.
Key Benefits- Rugged All-Metal Construction: Built for durability in commercial HVAC pneumatic systems, preventing housing failure under stress.
- High Control Accuracy: The 4" diaphragm actuator design ensures precise 5-10 PSI response for optimal valve positioning.
- Streamlined Installation: Features a standard 3/4-inch stroke and 1/8-inch NPT port for fast integration with Siemens 599 Series assemblies.
- Direct-Acting Fail-Safe: Provides reliable mechanical spring return operation for safety-critical steam and liquid service.
Is the Siemens 599-01082 compatible with non-Siemens valves?
This actuator is specifically engineered for a secure fit on the Flowrite 599 Series valve bodies. While universal mounting plates exist, we recommend verified Siemens valve-actuator compatibility to ensure correct stroke length and shut-off pressure.
What is the maximum diaphragm pressure for this 4-inch actuator?
The 599-01082 is rated for a maximum diaphragm pressure of 35 PSI. Exceeding this limit can damage the internal diaphragm and compromise the 5-10 PSI spring range calibration.
How do I confirm the stroke length for my specific installation?
This model features a 3/4-inch (20 mm) stroke. Always verify your valve's requirements; using an actuator with an incorrect stroke can lead to improper mixing or failure to achieve full close-off.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
