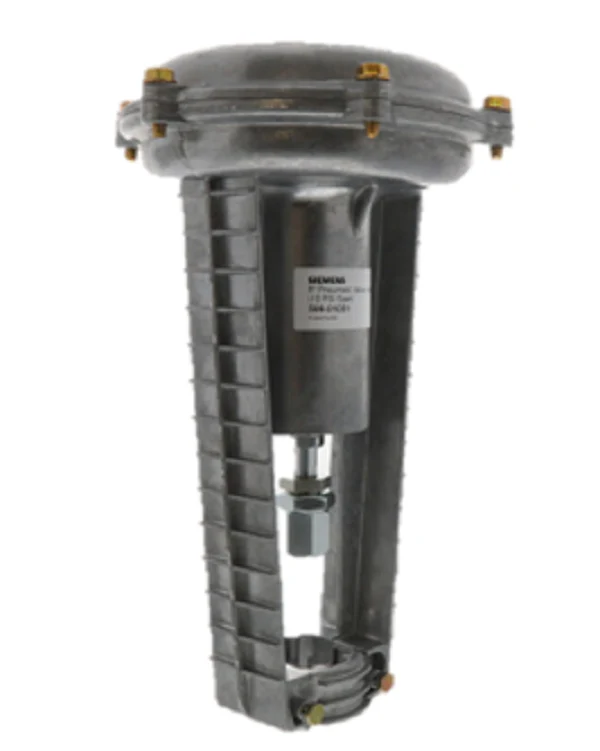

Siemens Building Technology 599-01051 Pneumatic Actuator
The Siemens Building Technology 599-01051 is a heavy-duty 8-inch pneumatic valve actuator engineered for high-demand steam and liquid service. Built for the veteran contractor, this Flowrite 599 Series actuator features a 3/4" (20mm) stroke and a fixed 10 psi span specifically optimized for high-temperature applications ranging from 200°F to 366°F. The robust design includes a completely enclosed housing that protects the internal diaphragm, spring, and start point adjuster from harsh mechanical room environments. With a 1/8" NPT air connection and a maximum diaphragm pressure of 35 psi, it provides consistent linear force for precise modulation of Flowrite VF 599 valve bodies. The field-adjustable start point (variable from 3 to 10 psi) allows for accurate valve sequencing and calibration in complex HVAC systems. This fail-safe unit ensures reliable performance in district heating, heat exchangers, and industrial process control where temperature resilience is non-negotiable.
Key Benefits- Extreme Temperature Rating: Equipped with a silicone rubber diaphragm to handle media temperatures up to 366°F (186°C).
- Field-Adjustable Start Point: Simplifies sequencing and calibration, allowing for fine-tuning of the 10 psi fixed span.
- Rugged Protection: The enclosed housing prevents contamination and damage to the pneumatic actuator internals.
- Direct-Coupled Versatility: Designed for seamless integration with Siemens Flowrite 599 Series valves in steam and liquid loops.
- Fail-Safe Reliability: Spring-return mechanism ensures the valve occupies its "Safe" position upon loss of control air.
What is the maximum operating air pressure for this actuator?
The maximum diaphragm pressure for the Siemens 599-01051 is 35 psi (241 kPa). Exceeding this limit can damage the silicone high-temp diaphragm.
How do I adjust the spring start point for sequencing?
With the actuator in an upright position, use a 3/4-inch open-end wrench to turn the adjustment screw. This allows you to set the start-to-open or start-to-close pressure for specific HVAC sequencing needs.
Can this actuator be installed in any orientation?
For best performance and longevity, the actuator should be installed vertically above the valve. However, it can be mounted in any position between vertical and horizontal; it is not recommended for upside-down installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
