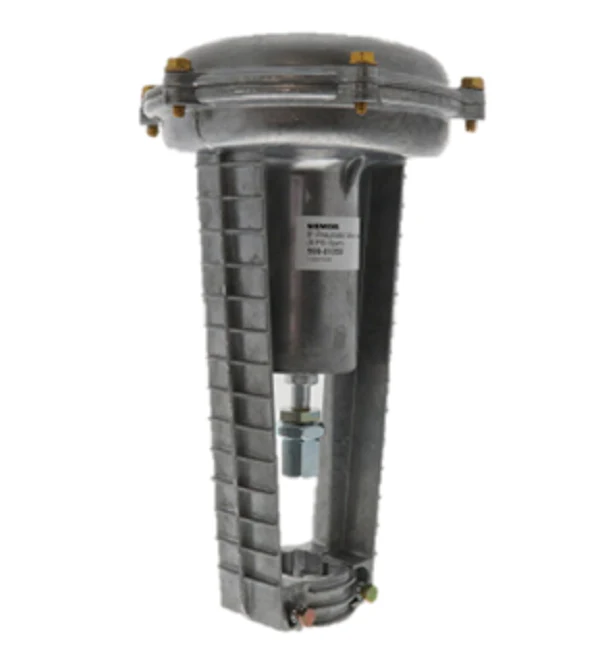

Siemens Building Technology 599-01050 Pneumatic Actuator
For contractors managing Flowrite 599 Series valves in steam or high-temp liquid service, the Siemens Building Technology 599-01050 Pneumatic Actuator is the industry standard for reliable modulation. This 8-inch pneumatic valve actuator features a fixed 5 psi spring span and a precise 3/4 inch stroke (20mm), making it ideal for sequencing and proportional control applications. The unit is built with a completely enclosed housing, protecting the internal diaphragm and start point adjuster from site debris and harsh mechanical environments. With a 1/8 inch NPT air connection and a maximum diaphragm pressure rating of 35 psi, this Siemens 599-01050 actuator handles demanding HVACR cycles without loss of calibration. Whether you are performing a field replacement or a new installation on a proportional pneumatic control system, the field-adjustable start point allows for seamless valve sequencing to optimize plant efficiency.
Key Benefits for Technicians:
- Precise Stroke Control: Optimized for 3/4" (20mm) travel for accurate valve positioning in liquid and steam lines.
- Rugged Enclosure: The metal housing shields the diaphragm and spring assembly, extending service life in mechanical rooms.
- Sequencing Flexibility: Includes a field-adjustable start point, essential for multi-valve setups and complex control loops.
- Standardized Plumbing: Utilizes a standard 1/8" NPT port for easy integration into existing pneumatic tubing.
- High Temperature Tolerant: Engineered to operate reliably in ambient temperatures ranging from 35°F to 180°F.
Common Questions:
Can I use the 599-01050 for steam applications?
Yes, this actuator is specifically designed for use on Flowrite series valves in both steam and liquid service, provided the media temperature remains within the valve body's functional specs.
Is the start point adjustable on this unit?
Standard 599-01050 units allow for field-adjustable start points, which is a critical feature for technicians needing to sequence multiple actuators from a single controller signal.
What is the maximum pressure for the diaphragm?
The maximum air pressure for the diaphragm is rated at 35 psi (241 kPa). Exceeding this pressure can lead to premature failure of the internal components.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $225.42
-65%$225.42
$78.90Siemens Building Technology 599-01050 Pneumatic Actuator
For contractors managing Flowrite 599 Series valves in steam or high-temp liquid service, the Siemens Building Technology 599-01050 Pneumatic Actuator is the industry standard for reliable modulation. This 8-inch pneumatic valve actuator features a fixed 5 psi spring span and a precise 3/4 inch stroke (20mm), making it ideal for sequencing and proportional control applications. The unit is built with a completely enclosed housing, protecting the internal diaphragm and start point adjuster from site debris and harsh mechanical environments. With a 1/8 inch NPT air connection and a maximum diaphragm pressure rating of 35 psi, this Siemens 599-01050 actuator handles demanding HVACR cycles without loss of calibration. Whether you are performing a field replacement or a new installation on a proportional pneumatic control system, the field-adjustable start point allows for seamless valve sequencing to optimize plant efficiency.
Key Benefits for Technicians:
- Precise Stroke Control: Optimized for 3/4" (20mm) travel for accurate valve positioning in liquid and steam lines.
- Rugged Enclosure: The metal housing shields the diaphragm and spring assembly, extending service life in mechanical rooms.
- Sequencing Flexibility: Includes a field-adjustable start point, essential for multi-valve setups and complex control loops.
- Standardized Plumbing: Utilizes a standard 1/8" NPT port for easy integration into existing pneumatic tubing.
- High Temperature Tolerant: Engineered to operate reliably in ambient temperatures ranging from 35°F to 180°F.
Common Questions:
Can I use the 599-01050 for steam applications?
Yes, this actuator is specifically designed for use on Flowrite series valves in both steam and liquid service, provided the media temperature remains within the valve body's functional specs.
Is the start point adjustable on this unit?
Standard 599-01050 units allow for field-adjustable start points, which is a critical feature for technicians needing to sequence multiple actuators from a single controller signal.
What is the maximum pressure for the diaphragm?
The maximum air pressure for the diaphragm is rated at 35 psi (241 kPa). Exceeding this pressure can lead to premature failure of the internal components.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
