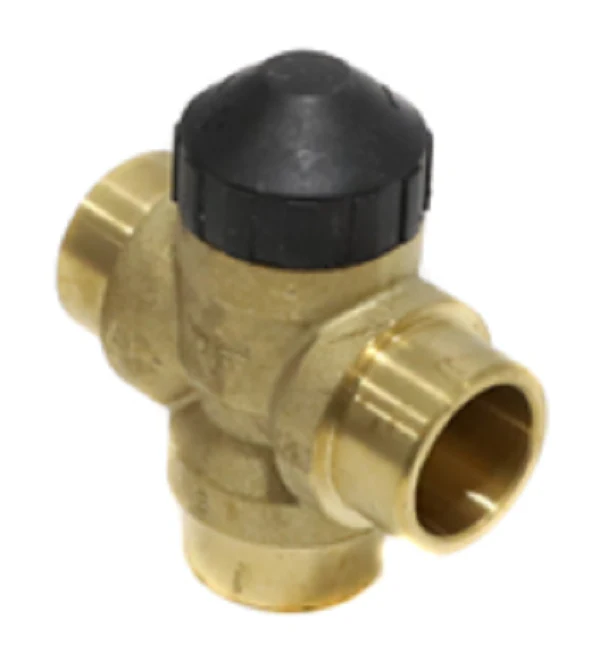

Siemens Building Technology 599-00532 Valve Assembly
The Siemens Building Technology 599-00532 Valve Assembly is a technical-grade 3-Way Zone Valve Assembly engineered for high-performance diverting or limited mixing applications. Designed for seamless integration into hydronic systems, this 3/4-inch sweat connection valve features a robust 4.1 Cv rating and a linear flow characteristic, ensuring precise temperature regulation for radiators, fan coil units, and VAV systems. The assembly utilizes a 120Vac power supply for its direct-coupled actuator, providing reliable control over water or water/glycol solutions up to 50% concentration.
Constructed with a heavy-duty brass body and brass trim, the Siemens 599-00532 is built to thrive in demanding commercial environments. Its stainless steel stem (ASTM A582 Type 303) and EPDM O-ring packing deliver a tight ANSI Class III leakage rating, while the metal-to-metal seat ensures longevity under high-cycle conditions. With a rated pressure class of ANSI 125 and a close-off pressure of 44 psi, this unit maintains system integrity across a wide media temperature range of 34°F to 230°F. The universal bonnet design allows for manual override and effortless maintenance, making it a preferred choice for experienced contractors installing Siemens 599-00532 3-way valves.
Key Benefits:- Precision Hydronic Control: Delivers accurate 4.1 Cv linear flow specifically designed for zone regulation in complex HVAC layouts.
- Durable Construction: Features a 3/4" brass body with a stainless steel stem to resist corrosion and wear in glycol-rich environments.
- High-Temperature Reliability: Rated for continuous operation in systems ranging from 34°F to 230°F, covering chilled water to high-temp heating.
- Standardized Compatibility: The Siemens zone valve 599-00532 fits universal bonnets, supporting rapid actuator replacement without removing the valve body.
- Tight Seal Performance: Engineered for ANSI Class III leakage standards to prevent thermal bleed and improve energy efficiency.
Is the Siemens 599-00532 suitable for mixing or diverting?
This valve is primarily designed for 3-way diverting applications or mixing in very specific, limited-application hydronic circuits.
What actuators are compatible with the 599-00532 valve body?
The assembly is designed to work with Siemens SFA/P or SSA/P series actuators using a 2.5 mm stroke and direct-coupled connection.
Can I use this valve with a 50% glycol mix?
Yes, the internal EPDM packing and brass trim are rated for water and water-glycol solutions up to a 50% concentration.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
