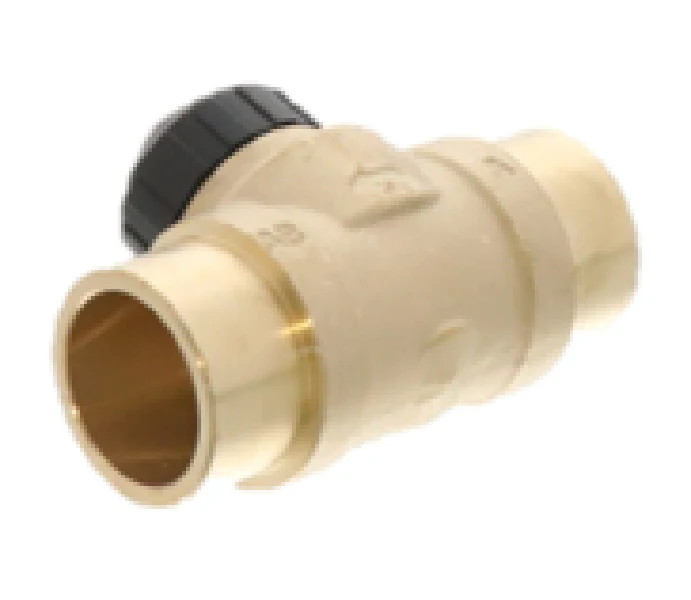

Siemens Building Technology 599-00513 Valve Assembly
The Siemens Building Technology 599-00513 Valve Assembly is a contractor-grade 1" sweat zone valve designed for high-performance hydronic system regulation. Engineered with a 7.0 Cv linear flow characteristic, this 2-way normally closed globe-style valve provides precise throttling for hot or chilled water applications, including radiant manifolds, fan coil units, and baseboard heating zones. The robust brass body with brass trim and a stainless steel stem ensure long-term reliability in systems utilizing up to 50% glycol solutions. Utilizing a direct-coupled universal bonnet, this assembly allows for an actuator connection that is streamlined and secure, capable of handling a close-off pressure of 22 psi with ANSI Class III leakage protection.
Operating on 120Vac, the internal 1/10-inch stroke is optimized for HVAC zone control, maintaining stable temperatures in demanding commercial and residential environments. The sweat connection design facilitates a permanent, leak-proof integration into copper piping systems while the ANSI 125 pressure class rating ensures durability under standard operating conditions. For technicians, the assembly represents a dependable solution for zone valve replacement or new mechanical installations where linear response and metal-to-metal seating are required for superior flow management.
Key Benefits for the Contractor- Universal Compatibility: The direct-coupled bonnet supports seamless integration with SFA, SSA, and STA series actuators for flexible control strategies.
- High Flow Capacity: A 7.0 Cv rating provides sufficient volume for large residential zones and commercial fan coils without excessive pressure drop.
- Reliable Media Handling: Industrial-grade EPDM O-rings and brass internals withstand fluid temperatures ranging from 34°F to 230°F.
- Minimized Maintenance: The metal-to-metal seat and stainless steel stem resist scale buildup and ensure consistent 2-position or modulating operation.
- What is the maximum glycol concentration for this valve? This assembly is rated for water and water-glycol mixtures up to 50% concentration.
- Can this valve be mounted in any orientation? For optimal performance and to protect the actuator from condensation, it should be mounted between the vertical and 90° horizontal positions; avoid mounting with the actuator below the valve body.
- Does this assembly include the actuator? This part number typically refers to the valve body assembly with the 120V configuration components; always verify if your specific application requires the SFA11U or similar electronic actuator prefix.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
