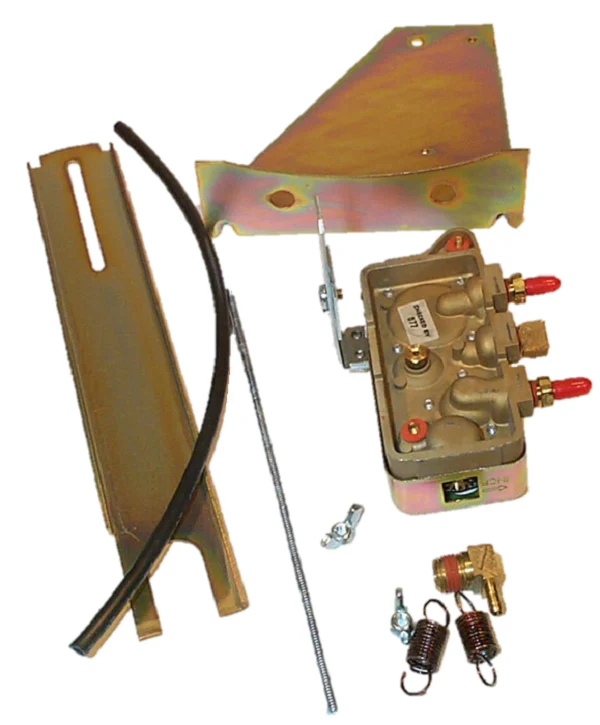

Siemens Building Technology 599-00423 Relay Mounting Kit
The Siemens Building Technology 599-00423 Relay Mounting Kit is a specialized field-installation hardware set specifically engineered for Flowrite 12-inch pneumatic actuators. This kit provides the necessary mechanical interface to securely mount electronic or pneumatic relays directly to the actuator housing, ensuring precise control signaling in demanding HVAC environments. Designed for seamless integration with valve bodies ranging from 1/2 inch to 1 inch, it supports a variety of flow configurations, including 2-way and 3-way diverting patterns with a linear flow characteristic. The robust ANSI Class 125 body rating and wide media temperature tolerance of 34°F to 230°F make it a reliable choice for technical plant room applications. By utilizing this kit, contractors can maintain the ANSI Class III leakage rating and ensure the 0.1-inch stroke performance required for accurate terminal unit control.
Key Benefits for Technicians:- Direct-Coupled Interface: Features a universal bonnet design for rigid, vibration-resistant mounting to the Flowrite actuator.
- Labor-Efficient Installation: Designed for tool-free mounting to the actuator, reducing time on-site during retrofit or new construction.
- Versatile Compatibility: Supports multiple Cv ranges (1, 2.5, 4, 4.1, 7) across small-bore valve sizes, providing flexibility for hydronic balancing.
- Operational Feedback: Integrated visual position indicator allows for immediate field verification of actuator and valve status.
- NEMA 1 Rated: Provides essential protection for internal components in standard indoor commercial mechanical room environments.
Which actuators is the 599-00423 compatible with?
This mounting kit is explicitly designed for the Siemens Flowrite 12-inch pneumatic actuator series used on 1/2" through 1" valves.
Does this kit include the relay itself?
No, this is a relay mounting kit containing the hardware and brackets required to secure a relay to the actuator; the relay must be sourced according to your specific control signal requirements.
Can this be used for outdoor installations?
This kit and the compatible actuators are NEMA 1 rated, meaning they are intended for indoor use only and must be protected from moisture and debris.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
