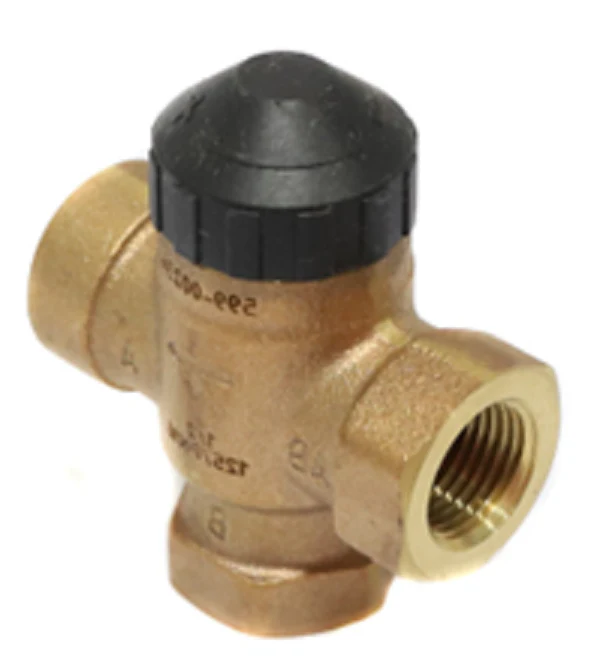

Siemens Building Technology 599-00234 Valve Assembly
The Siemens Building Technology 599-00234 is a high-performance 3-way mixing valve designed for demanding commercial HVACR applications. This 1/2 inch NPT zone valve features a robust brass body with brass trim and a stainless steel stem, ensuring durability in systems utilizing water or glycol solutions up to 50%. Engineered with a 4.0 Cv linear flow characteristic, it provides precise modulation for terminal units including fan coils, baseboard radiation, and radiant floor manifolds. Operable at 120Vac when paired with compatible SFA/P or SSA/P series actuators, the assembly utilizes a 1/10-inch stroke and is rated for ANSI Class 125 pressure requirements. The direct-coupled universal bonnet allow for tool-free actuator installation, reducing labor time during field replacement or new construction. Designed for tight shut-off, it carries an ANSI Class III leakage rating, maintaining system efficiency by preventing bypass in the closed position.
Key Benefits- Universal Compatibility: The 599 series zone valve integrates seamlessly with a wide range of Siemens electric and thermic actuators for flexible control logic.
- Streamlined Installation: Features a hand-tightened direct-coupled bonnet, allowing technicians to secure actuators without specialized tools.
- Durable Construction: Built with a brass valve body and EPDM O-ring packing to withstand media temperatures ranging from 34°F to 230°F.
- Precise Flow Control: The 4.0 Cv rating and linear flow characteristic ensure stable temperature regulation in VAV and hydronic zone applications.
- Maintenance Friendly: Includes visual position indication and manual override capabilities for rapid system troubleshooting and balancing.
What actuators are compatible with the Siemens 599-00234?
This valve body is designed to work with Siemens SFA, SFB, SSA, and SSP series electric actuators, supporting two-position, three-position, or 0-10 Vdc proportional control.
Can this valve be used for steam applications?
No, this specific 3-way zone valve is rated for water and water-glycol mixtures. For steam service, a valve with compatible trim and packing materials must be selected.
How should the valve be oriented during installation?
For optimal performance and to prevent actuator damage from condensation or leaks, install the assembly with the actuator located above the valve body in any position from vertical to horizontal.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
