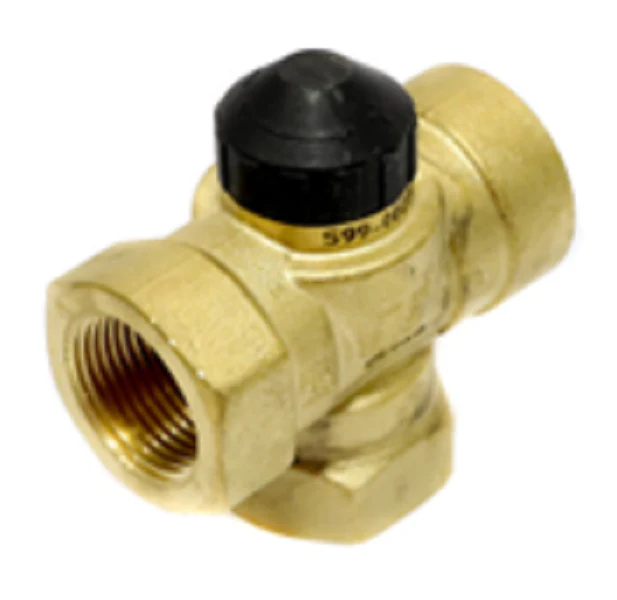

Siemens Building Technology 599-00233 Valve
The Siemens Building Technology 599-00233 is a heavy-duty 1-inch NPT 3-way zone valve designed for demanding hydronic HVAC systems. Featuring a robust brass body and brass trim, this 7.0 Cv linear flow assembly is engineered for precision control in mixing or diverting applications, including fan coil units, baseboard radiation, and VAV reheat coils. The ANSI Class 125 rated body utilizes a 1/10-inch stroke and includes a stainless steel stem with an EPDM O-ring packing to ensure long-term reliability and leak prevention. This 120Vac zone valve actuator assembly integrates seamlessly with SFA/P and SSA/P series actuators through a direct-coupled universal bonnet, allowing for tool-free installation and easy field maintenance. Designed for water or glycol solutions up to 50%, it supports a wide media temperature range from 34°F to 230°F, making it a versatile choice for both chilled water and hot water hydronic heating systems.
Key Benefits- Efficient Flow Control: High 7.0 Cv rating and linear characteristic ensure stable temperature regulation in large residential or light commercial zones.
- Simplified Serviceability: Direct-coupled bonnet design allows for fast actuator mounting and manual override capabilities without specialized tools.
- Rugged Construction: Brass body with metal-to-metal seating provides durability against the high static pressures common in modern boiler loops.
- Versatile Application: Primarily used as a diverting valve, it is also suitable for mixing applications in radiator and floor heating manifold configurations.
Is the Siemens 599-00233 compatible with 24V actuators?
While this specific assembly is often paired with 120Vac actuators, the 599-00233 valve body itself is compatible with a range of Siemens SFA/P and SSA/P series actuators, including 24V proportional or two-position models.
Can this valve be installed in any orientation?
Technicians should install the valve assembly with the actuator above the piping. Mounting it upside down is not recommended as it can lead to moisture buildup in the electronics.
What is the maximum glycol concentration allowed?
This valve is rated for use with water and water-antifreeze solutions containing up to 50% glycol.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $57.97
-65%$57.97
$20.29Siemens Building Technology 599-00233 Valve
The Siemens Building Technology 599-00233 is a heavy-duty 1-inch NPT 3-way zone valve designed for demanding hydronic HVAC systems. Featuring a robust brass body and brass trim, this 7.0 Cv linear flow assembly is engineered for precision control in mixing or diverting applications, including fan coil units, baseboard radiation, and VAV reheat coils. The ANSI Class 125 rated body utilizes a 1/10-inch stroke and includes a stainless steel stem with an EPDM O-ring packing to ensure long-term reliability and leak prevention. This 120Vac zone valve actuator assembly integrates seamlessly with SFA/P and SSA/P series actuators through a direct-coupled universal bonnet, allowing for tool-free installation and easy field maintenance. Designed for water or glycol solutions up to 50%, it supports a wide media temperature range from 34°F to 230°F, making it a versatile choice for both chilled water and hot water hydronic heating systems.
Key Benefits- Efficient Flow Control: High 7.0 Cv rating and linear characteristic ensure stable temperature regulation in large residential or light commercial zones.
- Simplified Serviceability: Direct-coupled bonnet design allows for fast actuator mounting and manual override capabilities without specialized tools.
- Rugged Construction: Brass body with metal-to-metal seating provides durability against the high static pressures common in modern boiler loops.
- Versatile Application: Primarily used as a diverting valve, it is also suitable for mixing applications in radiator and floor heating manifold configurations.
Is the Siemens 599-00233 compatible with 24V actuators?
While this specific assembly is often paired with 120Vac actuators, the 599-00233 valve body itself is compatible with a range of Siemens SFA/P and SSA/P series actuators, including 24V proportional or two-position models.
Can this valve be installed in any orientation?
Technicians should install the valve assembly with the actuator above the piping. Mounting it upside down is not recommended as it can lead to moisture buildup in the electronics.
What is the maximum glycol concentration allowed?
This valve is rated for use with water and water-antifreeze solutions containing up to 50% glycol.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
