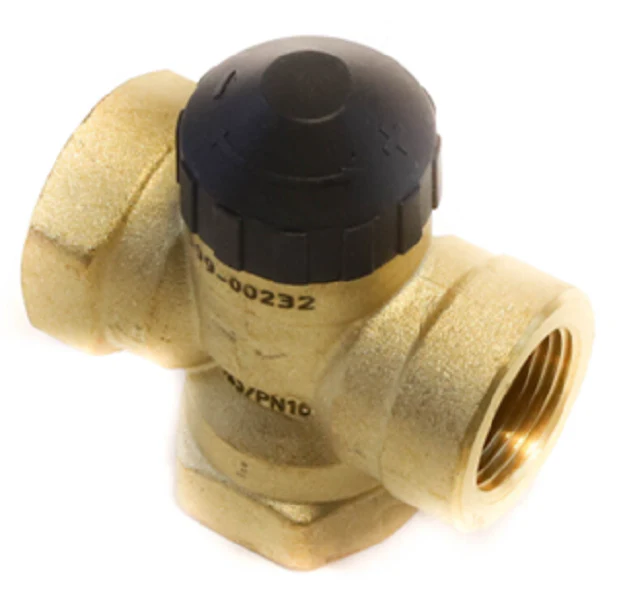

Siemens Building Technology 599-00232 Valve
The Siemens 599-00232 Zone Valve is a heavy-duty 3-way diverting valve engineered for precision control in hydronic systems. Built with a 3/4 inch NPT threaded connection, this valve features a 4.1 Cv linear flow characteristic and a rugged brass body with brass trim, ensuring reliable performance in demanding contractor applications. Designed to handle media temperatures from 34°F to 230°F, it is a versatile choice for radiators, floor heating manifolds, and fan coil units.
This Siemens 599 series valve is fully compatible with SFA/SFP and SSA/SSP series 120Vac electric actuators, allowing for seamless integration into existing HVAC zone control frameworks. The ANSI Class 125 rated body and stainless steel stem support a 44 psi close-off pressure, making it an essential component for low-pressure hot water or chilled water systems. Field technicians appreciate the all-metal plug and seat and the EPDM O-ring packing, which contribute to the valve's ANSI Class III leakage rating and overall mechanical durability.
- Optimized Flow Control: The 4.1 Cv rating and linear flow characteristic provide stable temperature regulation in mixing or diverting configurations.
- Universal Compatibility: Specifically designed to interface with Siemens electronic actuators using a 1/10-inch stroke for rapid response.
- Contractor-Grade Durability: Features a brass trim and robust metal-to-metal seating for longevity in high-cycle hydronic environments.
- Efficient Installation: The direct-coupled universal bonnet allows for tool-free actuator mounting and easy visual position verification.
Is the Siemens 599-00232 suitable for glycol solutions?
Yes, this valve is rated for use with water and glycol solutions up to a 50% concentration, typical in modern hydronic heating and cooling systems.
Can this valve be used for mixing applications?
While primarily designed as a 3-way diverting valve, it can be used for mixing in limited low-pressure applications; however, confirming specific system hydraulic requirements with technical staff is recommended.
What is the close-off pressure rating for this 3/4 inch NPT valve?
When paired with the appropriate Siemens SF or SS series actuator, this valve maintains a rated close-off pressure of 44 psi.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $44.92
-65%$44.92
$15.72Siemens Building Technology 599-00232 Valve
The Siemens 599-00232 Zone Valve is a heavy-duty 3-way diverting valve engineered for precision control in hydronic systems. Built with a 3/4 inch NPT threaded connection, this valve features a 4.1 Cv linear flow characteristic and a rugged brass body with brass trim, ensuring reliable performance in demanding contractor applications. Designed to handle media temperatures from 34°F to 230°F, it is a versatile choice for radiators, floor heating manifolds, and fan coil units.
This Siemens 599 series valve is fully compatible with SFA/SFP and SSA/SSP series 120Vac electric actuators, allowing for seamless integration into existing HVAC zone control frameworks. The ANSI Class 125 rated body and stainless steel stem support a 44 psi close-off pressure, making it an essential component for low-pressure hot water or chilled water systems. Field technicians appreciate the all-metal plug and seat and the EPDM O-ring packing, which contribute to the valve's ANSI Class III leakage rating and overall mechanical durability.
- Optimized Flow Control: The 4.1 Cv rating and linear flow characteristic provide stable temperature regulation in mixing or diverting configurations.
- Universal Compatibility: Specifically designed to interface with Siemens electronic actuators using a 1/10-inch stroke for rapid response.
- Contractor-Grade Durability: Features a brass trim and robust metal-to-metal seating for longevity in high-cycle hydronic environments.
- Efficient Installation: The direct-coupled universal bonnet allows for tool-free actuator mounting and easy visual position verification.
Is the Siemens 599-00232 suitable for glycol solutions?
Yes, this valve is rated for use with water and glycol solutions up to a 50% concentration, typical in modern hydronic heating and cooling systems.
Can this valve be used for mixing applications?
While primarily designed as a 3-way diverting valve, it can be used for mixing in limited low-pressure applications; however, confirming specific system hydraulic requirements with technical staff is recommended.
What is the close-off pressure rating for this 3/4 inch NPT valve?
When paired with the appropriate Siemens SF or SS series actuator, this valve maintains a rated close-off pressure of 44 psi.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
