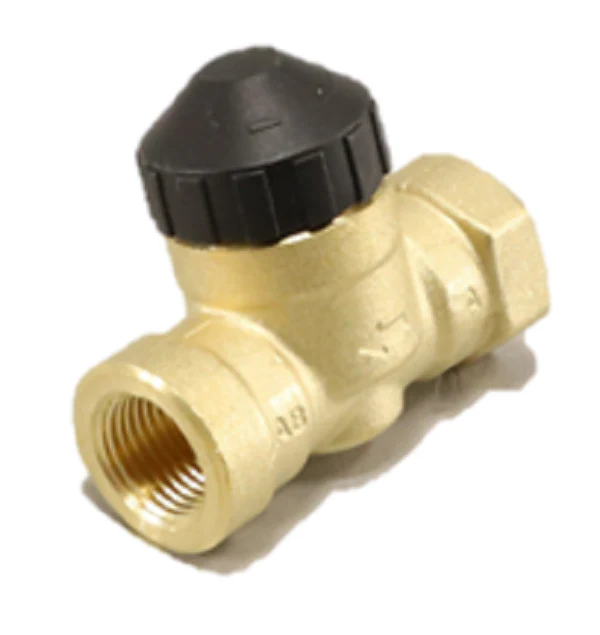

Siemens Building Technology 599-00211 Valve Assembly
The Siemens Building Technology 599-00211 Valve Assembly is a high-performance 2-way normally open zone valve engineered for precise hydronic control in demand-heavy HVACR environments. Built with a rugged brass body and brass trim, this 1/2 inch NPT valve provides a 2.5 Cv linear flow rate, ensuring stable temperature regulation for terminal units such as radiators, fan coils, and baseboard heaters. The assembly utilizes 24Vac power and features a metal-to-metal seat design, which eliminates the common failure points associated with traditional rubber flappers. This Siemens 599 Series component is integrated into systems requiring a 44 psi close-off pressure and is compatible with water or glycol solutions up to 50%. Its direct-coupled universal bonnet allows for a simplified, tool-free installation of SFA/P and SSA/P electric actuators, effectively reducing field labor time while maintaining the high rangeability required for linear stroke flow control.
Key Benefits- Metal-to-Metal Seat: Professional-grade construction prevents the debris buildup and chipping typically seen in rubber-sealed valves.
- Precise Flow Control: The linear flow characteristic ensures accurate modulation for stable comfort in cooling and heating zones.
- High Media Compatibility: Rated for water and water-glycol solutions from 34°F to 230°F, fitting most commercial hydronic layouts.
- Durable Brass Trim: Engineered for longevity in rigorous duty cycles, maintaining ANSI Class III leakage ratings over time.
- Universal Bonnet Connection: Streamlines actuator replacement and installation with a direct-coupled design that requires no special tools.
Is the 599-00211 compatible with 0-10V modulation?
Yes, while this is a valve body assembly, its compatibility depends on the actuator. When paired with an SSA series actuator, it supports 0-10 VDC proportional control, as well as two-position and three-position floating signals.
What is the close-off pressure rating for this Siemens zone valve?
This assembly provides a 44 psi close-off pressure, which is sufficient for most standard residential and commercial zone control applications using radiators and VAV units.
Does this valve require frequent maintenance?
Because it lacks perishable rubber components, it is designed for minimal maintenance. The stainless steel stem and metal seat are specifically chosen to resist mineral scaling and general system fatigue.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
