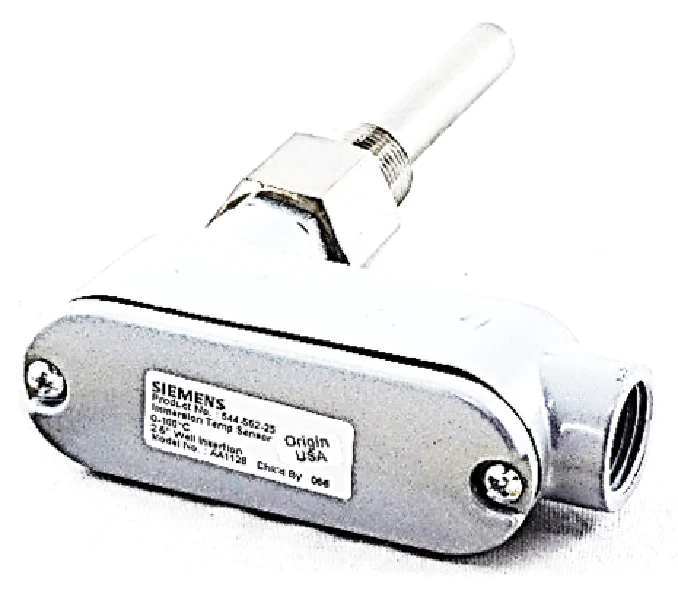

Siemens Building Technology 544-562-25 Sensor
The Siemens Building Technology 544-562-25 Sensor is a high-precision liquid immersion temperature sensor engineered for demanding hydronic and commercial HVACR applications. This 4-20mA temperature transmitter features a 100 Ohm platinum RTD sensing element (Pt100), ensuring a linear and stable output across a broad operating range of 32°F to 212°F (0°C to 100°C). Designed for direct pipe mounting, the unit includes a 2.5-inch 300-series stainless steel thermowell to protect the sensing probe while maintaining excellent thermal conductivity for rapid response times. The rugged cast zinc/aluminum housing is built to withstand mechanical stress in mechanical rooms and industrial environments. This HVAC immersion probe utilizes a hardwired lead connection and is fully compatible with most Building Automation Systems (BAS) and equipment controllers requiring a standard current loop signal. Accurate to within +/- 0.54°F at 32°F, it provides the reliability needed for critical chilled and hot water loop monitoring.
Key Benefits- High Accuracy: The 100 Ohm platinum RTD element delivers precise thermal monitoring with minimal signal drift.
- Standardized Integration: The 4-20mA output signal ensures universal compatibility with industrial controllers and PLC inputs.
- Durable Construction: Includes a 2.5-inch stainless steel thermowell as standard, protecting the sensor from high-pressure fluid environments.
- Versatile Application: Ideal for monitoring discharge water, return air, and hydronic supply temperatures in commercial boilers and chillers.
- Simplified Installation: Features a 1/2-inch NPT mounting connection and standard lead wires for quick field wiring.
Does this sensor require a separate thermowell for installation?
No, this specific model is supplied with a 2.5-inch stainless steel thermowell included in the package, allowing for immediate installation into a 1/2-inch NPT pipe coupling.
Can the 544-562-25 be used with AC or DC power?
The transmitter is designed for flexible power requirements, typically operating on 18 to 36V DC or 24V AC (+/- 20%), making it compatible with most standard control panels.
Is this immersion sensor suitable for potable water systems?
This sensor is specifically intended for closed-loop hydronic heating and cooling systems; it is not rated for use in potable (drinking) water applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
