Siemens Building Technology 540-670A Sensor

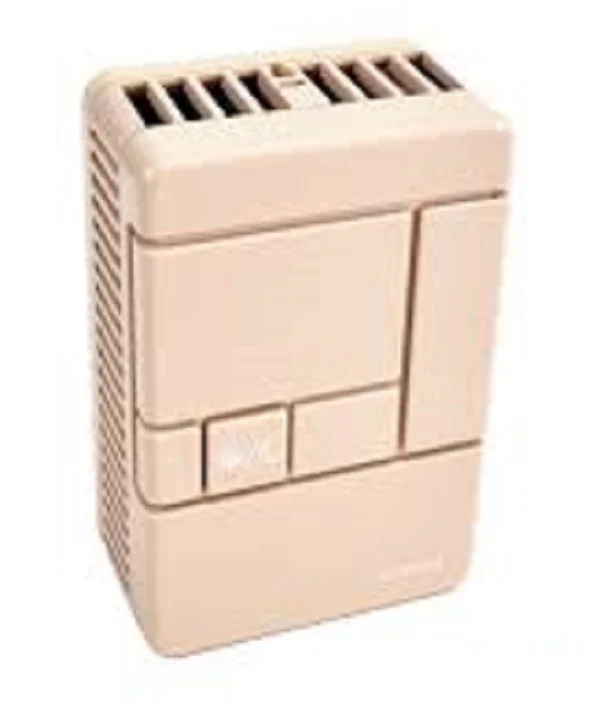

The Siemens 540-670A Room Temperature Sensor is a precision-engineered analog room sensor designed for seamless integration with Siemens APOGEE and TALON building automation systems. Featuring a rugged beige enclosure, this 10k ohm Type II thermistor sensor provides accurate HVAC zone control by monitoring ambient room temperature. This specific model includes a sliding setpoint adjustment (55°F to 95°F) and a manual override button (O/R), allowing occupants to signal the controller for temporary comfort adjustments or after-hours operation. The Siemens 540-670A utilizes a modular RJ-11 connection for simplified field installation and wiring to Terminal Equipment Controllers (TEC), ensuring reliable data transmission for commercial HVAC monitoring. Designed for durability in high-traffic BAS networking environments, it maintains high-impedance signal integrity and resists drift, making it a standard choice for commercial cooling and heating sequences where local user interface and setpoint control are required for energy efficiency and occupant comfort.
- Precision Sensing: Utilizes a 10k ohm Type II thermistor for highly accurate resistance-based temperature measurement.
- Enhanced Functionality: Integrated setpoint slider and bypass switch provide local control without requiring access to the central BMS interface.
- Simplified Installation: Features a tool-less RJ-11 port for fast commissioning and troubleshooting in the field.
- System Compatibility: Fully compatible with legacy and modern Siemens Building Technologies controllers and P1/P2 communication protocols.
Common Technical Questions
How do I wire the Siemens 540-670A sensor to a controller?
The unit typically uses a standard 6-wire RJ-11 cable to connect directly to the TEC controller. For hard-wired applications, refer to the terminal block pinout provided in the Siemens technical manual for 540 series sensors.
Can this sensor be calibrated in the field?
The 10k ohm thermistor is factory-calibrated. If readings are inconsistent, technicians should check for voltage drop across the wiring or verify that there are no drafts behind the wall plate affecting the thermal sensor accuracy.
What is the purpose of the override button?
The manual override sends a resistance signal to the BAS controller to trigger a "Tenant Override" or "Occupied" mode, which is essential for managing HVAC energy savings during unconventional hours.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
