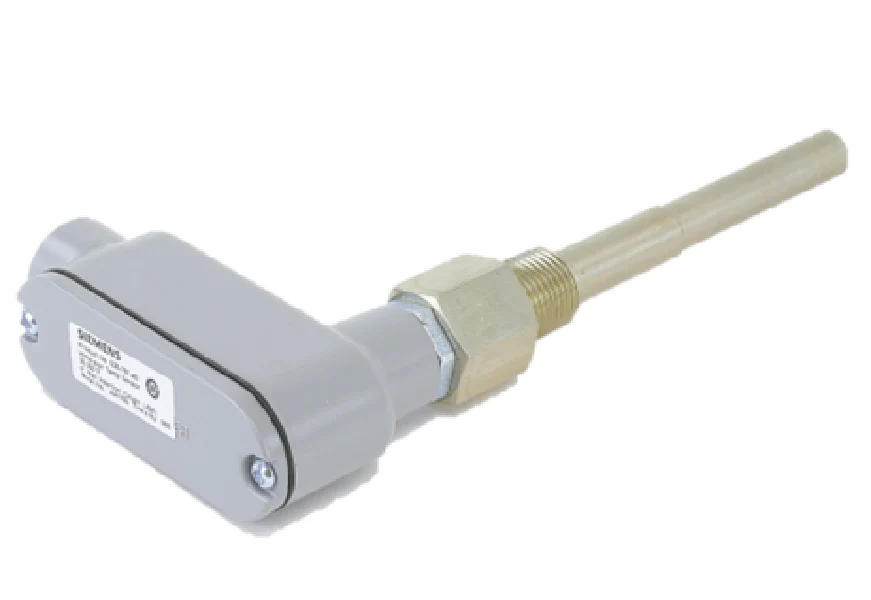

Siemens Building Technology 536-767-40 Temperature Sensor
The Siemens Building Technology 536-767-40 Temperature Sensor is a precision-engineered immersion temperature sensor designed for demanding HVACR and industrial fluid monitoring. This unit features a 100 Ohm Platinum RTD (Pt100) sensing element coupled with an integrated transmitter to deliver a linear 4-20mA output signal, ensuring high signal integrity over long wire runs. Optimized for building automation systems, the 536-767-40 provides a sensing range of 30°F to 250°F (-1°C to 121°C), making it ideal for monitoring both chilled water and hot water loops. The 4-inch (102mm) 300-series stainless steel probe ensures rapid thermal response and durability in harsh environments. This model is supplied with a thermowell (1/2-inch NPT) to facilitate easy maintenance without the need to drain the system. Designed for simplified hardwired lead connection, this 4-20mA HVAC sensor ensures accurate temperature data for PID loops and mechanical equipment protection in Siemens Talon or equivalent BMS architectures.
- High Signal Integrity: Linear 4-20mA industry standard output minimizes interference and allows for accurate remote monitoring.
- Precision Sensing: Utilizes a 100 Ohm Platinum RTD element to provide consistent, repeatable temperature readings within +/- 0.54°F.
- System Protection: Includes a 4-inch stainless steel thermowell, allowing for sensor removal or replacement with zero down-time.
- Wide Application: Broad 30°F to 250°F range supports both heating and cooling loop control.
- Industrial Construction: Corrosion-resistant stainless steel probe and compact housing designed for professional mechanical rooms.
Common Questions
Is this sensor compatible with non-Siemens controllers?
Yes, as long as your controller accepts a standard 4-20mA analog input and can be scaled for the 30°F to 250°F range, this sensor will integrate seamlessly.
Does the 536-767-40 require a local display?
No, this is a no-display temperature sensor designed to transmit data to a centralized building management system or PLC.
How do I install the 536-767-40 in a pressurized pipe?
Always install the provided thermowell into the pipe using the 1/2-inch NPT connection during system installation. The probe then threads into the well, allowing for dry-insertion sensing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
