Siemens Building Technology 466857488 PCB

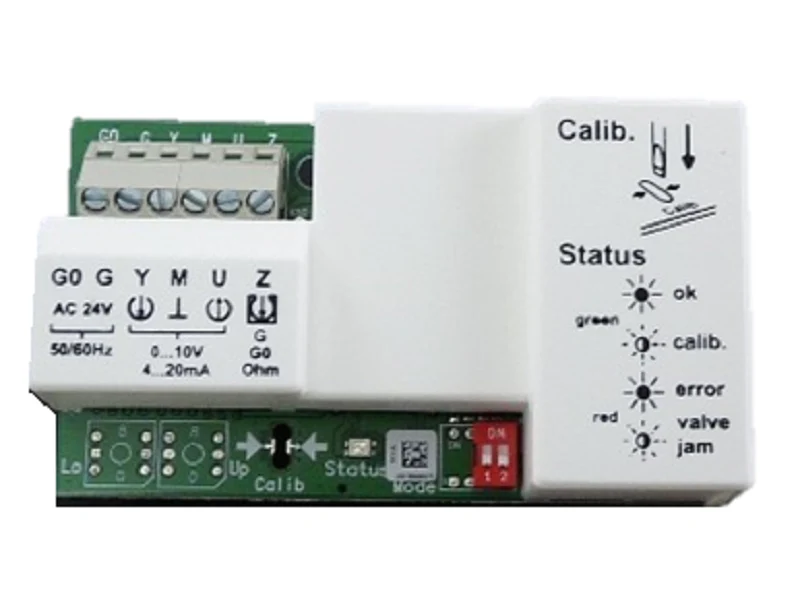

The Siemens Building Technology 466857488 is a high-precision replacement PCB engineered for the repair and field-restoration of SKB62U, SKC62U, and SKD62U series electronic actuators. Professional technicians utilize this service kit to resolve circuitry malfunctions or communication failures within the Flowrite 599 Series without requiring a full actuator replacement. This repair PCB supports proportional control signaling, including 0-10 Vdc and 4-20 mA inputs, ensuring the actuator remains integrated with building automation systems. The assembly is specifically designed to handle the 24 Vac power requirements and logic processing for stroke calibration and feedback potentiometer management. Built to OEM standards, this board maintains the operational integrity and NEMA 3R rating of your terminal equipment, ensuring reliable valve modulation in demanding HVACR environments. This kit typically includes the circuit board, plastic retainer, and necessary mounting hardware for an efficient field swap.
Key Benefits- Compatible with Siemens SKB/C/D62U actuator series for rapid field restoration.
- Supports multiple control signals, including 0-10Vdc and 4-20mA proportional inputs.
- Facilitates accurate stroke calibration and positioning feedback for precise valve control.
- Cost-effective alternative to complete actuator replacement in Flowrite 599 systems.
- Engineered by Siemens Building Technology to meet exact OEM electrical specifications.
How do I calibrate the stroke after installing this replacement board?
Once the board is secured and powered with 24 Vac, the actuator must be mechanically connected to the valve. Calibration is usually triggered during commissioning to allow the logic to identify 0% and 100% stroke positions.
Does this PCB kit include the necessary mounting hardware?
Yes, the 466857488 service kit typically includes the circuit board, plastic retainer, Torx screws, and sometimes a specialized wrench for the installation.
What safety precautions are necessary during the swap?
You must disconnect all power before removing the actuator cover. Technicians should remain electrostatically discharged (grounded) while handling the board to prevent static damage to the surface-mounted components.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
