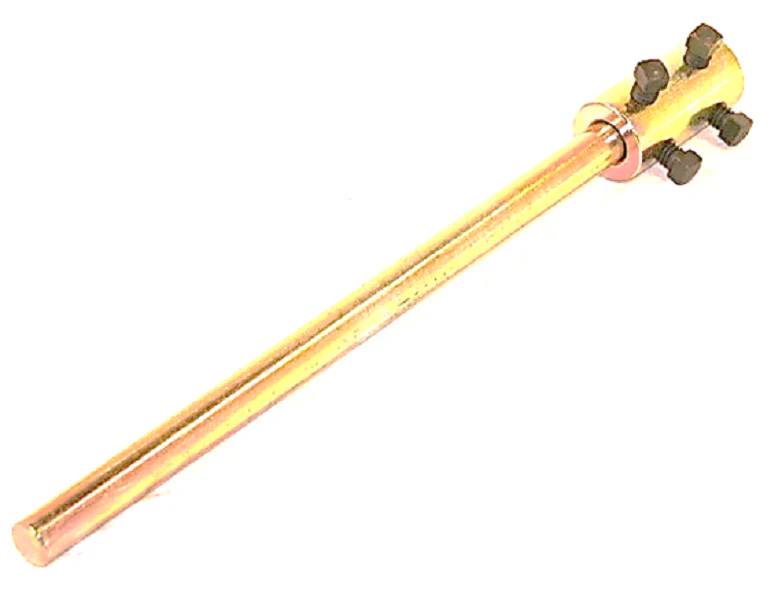

Siemens Building Technology 333-043-03 Shaft Extension Rod
The Siemens Building Technology 333-043-03 Shaft Extension Rod is a critical hardware component designed for field-installed damper actuators within commercial HVACR systems. Engineered for durability, this 1/2-inch diameter shaft extension provides the additional 9-inch reach necessary to bridge the gap between a damper driving axle and an externally mounted actuator. This is particularly vital in applications where insulated ductwork or structural obstructions prevent direct-coupled mounting. By utilizing a high-strength aluminum or steel alloy construction, this rod ensures minimal torsional flex, maintaining precise HVAC air flow control and accurate positioning throughout the full 90-degree rotation of the assembly.
For technicians working with pneumatic damper actuators or OpenAir electronic actuators, the 333-043-03 offers a professional solution for retrofit damper mounting. It allows for the actuator shaft extension to be modified manually; if specific site conditions require a shorter profile, the rod can be field-cut to the exact length needed. This part ensures that the torque from the actuator is reliably transferred to the damper blades, preventing slippage and system inefficiency during high-static pressure operations.
- Optimal Reach: Provides a 9-inch (229 mm) extension to overcome mounting depth challenges in complex air handling units.
- Universal Compatibility: Designed for standard 1/2-inch damper shafts, making it a versatile choice for both Siemens and third-party jackshafts.
- Robust Construction: Manufactured from industrial-grade materials to withstand the repetitive mechanical stress of high-duty cycle applications.
- Flexible Installation: Can be cut to length in the field to accommodate tight clearances or specific standoff distances.
Common Questions
Can this extension rod be used on 3/8-inch shafts?
The 333-043-03 is specifically sized for 1/2-inch (13 mm) shafts. To utilize this extension on a 3/8-inch (10 mm) shaft, a separate 331-632 adapter is typically required to ensure a secure fit.
Is this compatible with electronic spring-return actuators?
Yes, this shaft extension works seamlessly with both pneumatic actuators and electronic models like the Siemens GCA or GIB series, provided the mounting clamp accepts a 1/2-inch round shaft.
Can I cut the rod if 9 inches is too long for my application?
Absolutely. Veteran technicians often cut these rods to length using a hacksaw or portable bandsaw to meet specific field requirements while maintaining structural integrity.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
