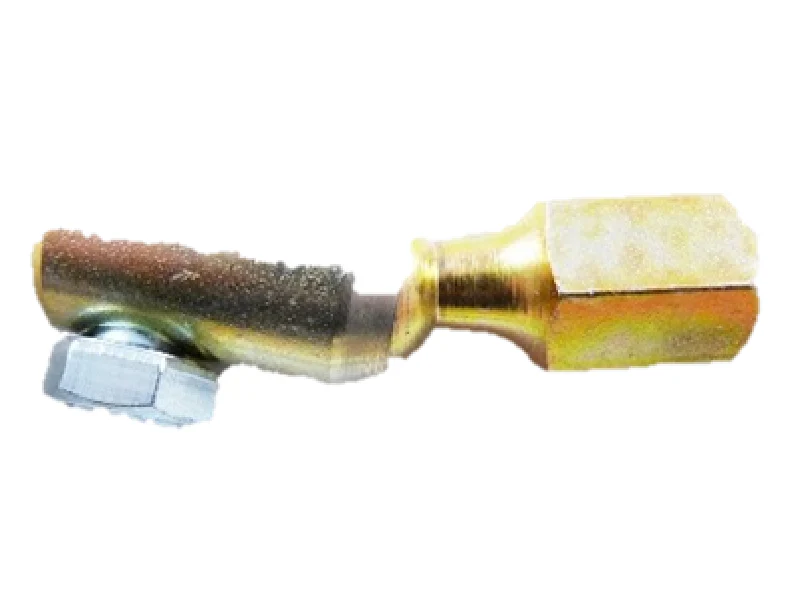

Siemens Building Technology 331-656 Connector
The Siemens 331-656 Ball Joint Connector is a critical linkage component engineered for precise control in pneumatic actuator applications. Featuring a 3/8"-24 UNF thread, this connector provides a secure, adjustable interface between the damper actuator piston rod and the linkage assembly. Built with high-strength materials to withstand the repetitive mechanical stresses of HVAC damper modulation, the 331-656 joint ensures minimal hysteresis and smooth force transmission. Contractors utilize this specific Siemens damper linkage part for its durability in high-cycle environments where maintaining consistent blade positioning is essential for airflow accuracy. The ball joint design allows for necessary angular misalignment during the stroke, preventing binding and extending the service life of both the actuator and the damper hardware. When performing field replacements or new installations, the Siemens 331-656 offers the reliable mechanical coupling required for integration with standard pneumatic control systems and multi-blade damper setups.
Key Benefits for Technicians- Precision Threading: The 3/8"-24 thread pitch ensures a tight fit and fine-tuned adjustment for exact linkage alignment.
- Enhanced Durability: Engineered for industrial-grade pneumatic actuator linkage applications to reduce mechanical wear.
- Reduced Binding: Pivot design compensates for shaft misalignment, ensuring smooth damper stroke operation.
- Direct Replacement: Designed for seamless compatibility with Siemens 331 series actuators and standard crank arms.
Is the Siemens 331-656 compatible with other actuator brands?
While designed for Siemens Building Technology hardware, it fits any 3/8"-24 UNF rod, making it a versatile universal ball joint connector for various pneumatic assemblies.
How do I prevent the linkage from slipping during operation?
Ensure the lock nut is properly torqued against the ball joint body to maintain the fixed position on the actuator piston rod under load.
Can this be used in high-temperature air handling units?
Yes, its metallic construction is suitable for standard HVAC operating temperatures found in commercial ductwork and air handling unit (AHU) environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $46.89
-65%$46.89
$16.41Siemens Building Technology 331-656 Connector
