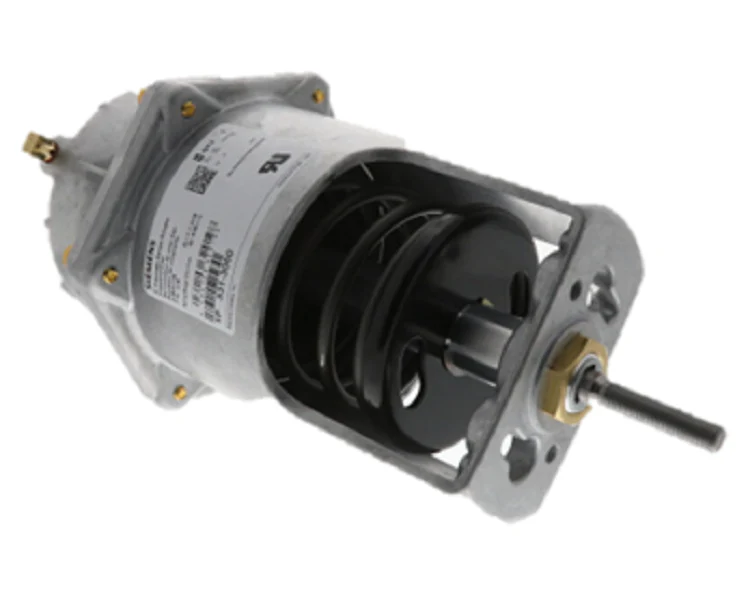

Siemens Building Technology 331-3060 Actuator
The Siemens 331-3060 is a heavy-duty No. 6 pneumatic damper actuator designed for reliable proportional or two-position control of HVAC systems. Featuring a rugged all-metal construction and a 4-inch stroke, this spring return actuator is engineered to drive large outdoor air, exhaust, and face-and-bypass dampers. With an 8-13 psi nominal spring range, it is specifically optimized for high-torque applications, including multi-section damper assemblies requiring unison or sequence operation. As a UL-recognized component (EMKU2), the 331-3060 meets stringent standards for use on fire and smoke dampers, providing a dependable fail-safe solution for life safety systems.
Built for the longevity demands of a commercial contractor, this unit utilizes an ozone-resistant, silicone rubber rolling diaphragm that is fully replaceable, extending the service life of the air motor. The integral pivot mount allows for versatile installation on extended shafts or frame-mounted setups. Its large effective diaphragm area provides the necessary thrust to overcome high static pressures in fan inlet vanes and centrifugal refrigeration vanes. Whether you are performing a pneumatic actuator replacement or a new fire smoke damper installation, this Siemens Building Technology component provides the precise mechanical force and durability required for critical environmental control.
Key Benefits
- All-Metal Housing: High durability for mechanical rooms and demanding industrial HVAC environments.
- Fire & Smoke Rated: UL recognized for high-temperature and life-safety smoke control systems.
- High Torque Performance: Designed to actuate large multi-section dampers without binding or deflection.
- Replaceable Diaphragm: Minimizes long-term maintenance costs with field-serviceable internals.
- Versatile Mounting: Integral pivot design supports both frame and extended shaft configurations.
Common Questions
- Can this actuator be used in normally open or normally closed configurations? Yes, the stroke and orientation can be adjusted during installation to meet fail-safe requirements for OA or exhaust dampers.
- Is the 331-3060 compatible with positioning relays? While this base model is an integral pivot type, it can be integrated with Siemens 147 series positioners for precise modulation.
- What tools are required for field installation? Standard technician tools including a flat-blade screwdriver, an adjustable wrench, and pliers are typically sufficient for mounting and linkage adjustment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
