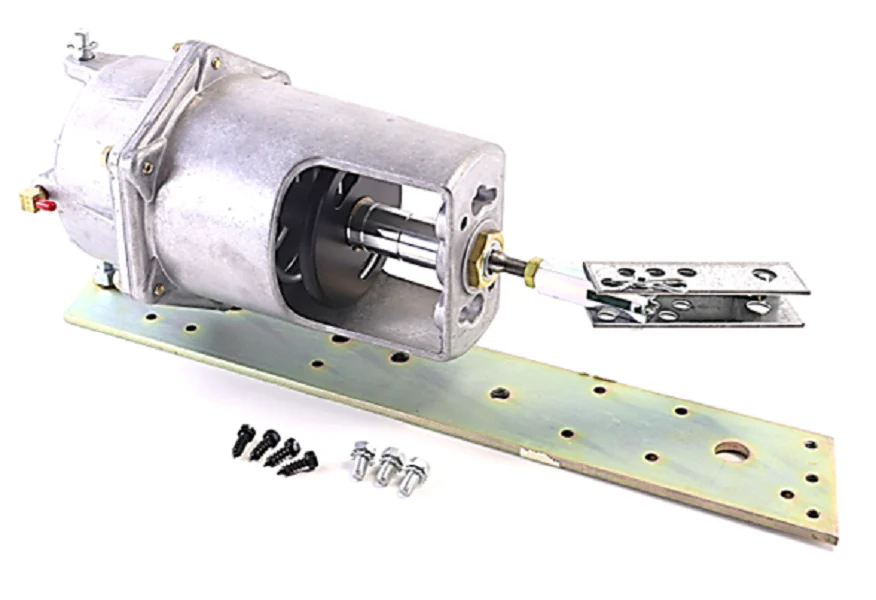

Siemens Building Technology 331-3013 Actuator
The Siemens Building Technology 331-3013 Actuator is a heavy-duty #6 pneumatic damper actuator designed for contractors requiring high-torque performance in demanding HVACR environments. This rugged metal-fabricated power unit features a 3-13 psi nominal spring range and a 4-inch stroke, making it ideal for the gradual or positive actuation of large dampers, fire and smoke dampers, and centrifugal refrigeration inlet vanes. Built with a replaceable ozone-resistant silicone rubber rolling diaphragm, this spring return actuator ensures long-term reliability and precise control. The 331-3013 comes equipped with an integral pivot, pivot post, and universal mounting hardware for extended shaft mounting, providing the mechanical advantage needed for high-load applications. With a 1/8" NPT female air connection and inclusive bracket and linkage components, this pneumatic control assembly simplifies field installation while maintaining professional-grade air-tight integrity in any pneumatic terminal unit or air handling system.
Key Benefits- Heavy-Duty Construction: All-metal body designed for industrial-grade durability and stable performance under high static pressure.
- Precise Modulation: The 3-13 psi spring range allows for accurate sequencing and seamless integration with existing pneumatic controllers.
- Versatile Mounting: Includes bracket and linkage for universal pivot or extended shaft mounting, ensuring compatibility with a wide range of damper sizes.
- Serviceable Design: Features a replaceable diaphragm to extend equipment life and reduce long-term maintenance overhead for facilities.
Is the 331-3013 compatible with fire and smoke damper applications?
Yes, this No. 6 pneumatic actuator is UL Recognized for use in damper categories covering fire and smoke leakage-rated dampers, provided the torque requirements are met.
What is the maximum stroke length of this actuator?
The Siemens 331-3013 provides a standard 4-inch (102 mm) stroke, suitable for driving large damper blades and centrifugal fan inlet vanes.
Can I install a positioning relay on this unit?
Yes, this model supports an optional actuator positioning relay for applications requiring highly accurate stem positioning or faster response times.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $404.85
-65%$404.85
$141.70Siemens Building Technology 331-3013 Actuator
The Siemens Building Technology 331-3013 Actuator is a heavy-duty #6 pneumatic damper actuator designed for contractors requiring high-torque performance in demanding HVACR environments. This rugged metal-fabricated power unit features a 3-13 psi nominal spring range and a 4-inch stroke, making it ideal for the gradual or positive actuation of large dampers, fire and smoke dampers, and centrifugal refrigeration inlet vanes. Built with a replaceable ozone-resistant silicone rubber rolling diaphragm, this spring return actuator ensures long-term reliability and precise control. The 331-3013 comes equipped with an integral pivot, pivot post, and universal mounting hardware for extended shaft mounting, providing the mechanical advantage needed for high-load applications. With a 1/8" NPT female air connection and inclusive bracket and linkage components, this pneumatic control assembly simplifies field installation while maintaining professional-grade air-tight integrity in any pneumatic terminal unit or air handling system.
Key Benefits- Heavy-Duty Construction: All-metal body designed for industrial-grade durability and stable performance under high static pressure.
- Precise Modulation: The 3-13 psi spring range allows for accurate sequencing and seamless integration with existing pneumatic controllers.
- Versatile Mounting: Includes bracket and linkage for universal pivot or extended shaft mounting, ensuring compatibility with a wide range of damper sizes.
- Serviceable Design: Features a replaceable diaphragm to extend equipment life and reduce long-term maintenance overhead for facilities.
Is the 331-3013 compatible with fire and smoke damper applications?
Yes, this No. 6 pneumatic actuator is UL Recognized for use in damper categories covering fire and smoke leakage-rated dampers, provided the torque requirements are met.
What is the maximum stroke length of this actuator?
The Siemens 331-3013 provides a standard 4-inch (102 mm) stroke, suitable for driving large damper blades and centrifugal fan inlet vanes.
Can I install a positioning relay on this unit?
Yes, this model supports an optional actuator positioning relay for applications requiring highly accurate stem positioning or faster response times.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
