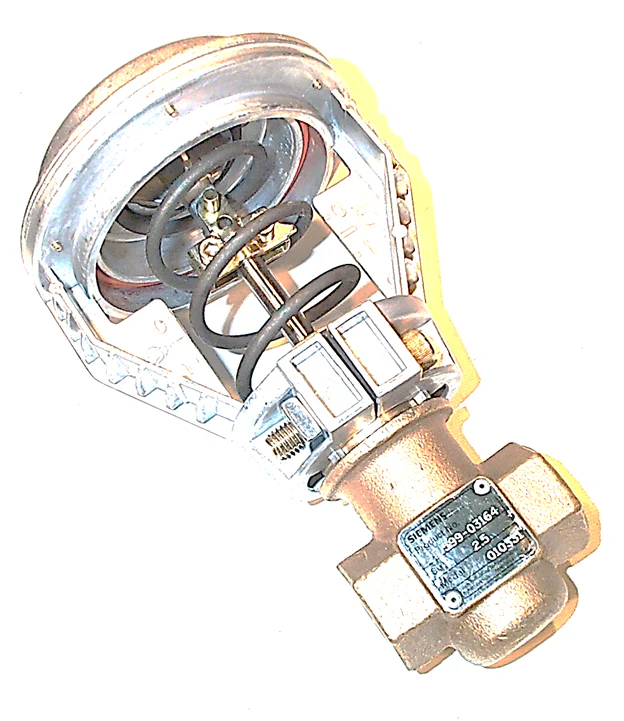

Siemens Building Technology 268-03164 Valve Assembly
For professional contractors managing hydronic or steam systems, the Siemens 268-03164 Valve Assembly serves as a reliable 2-way normally open globe valve designed for precision modulation. This Flowrite 599 Series unit features a 1/2-inch NPT female-to-female connection with a 2.5 Cv rating and an equal percentage flow characteristic, ensuring stable heat transfer across its full stroke. Built with a rugged UNS CA 844 bronze body, brass trim, and stainless steel stem, this assembly is engineered to withstand temperatures from 20°F to 250°F. The integrated 4-inch pneumatic actuator utilizes a 3-8 PSI spring range for fail-safe open operation, making it ideal for terminal units and air handling applications. With an ANSI Class 250 pressure rating and Class IV leakage compliance, this direct-coupled globe valve provides the tight shut-off and durability required for demanding HVAC pneumatic control systems. Maintain peak efficiency in water or saturated steam loops by utilizing this industry-standard Siemens building technology component.
Key Benefits:- Precision Modulation: The equal percentage flow design ensures linear thermal output for superior temperature control.
- Industrial Durability: Features high-quality bronze body construction and EPDM O-ring packing for extended service life in water and steam.
- Fail-Safe Security: The normally open configuration ensures systems remain at maximum flow in the event of pneumatic signal loss.
- Standardized Integration: The 1/2" NPT ports and universal bonnet design simplify field replacement and installation.
- What media is compatible with the Siemens 268-03164? It is designed for use with saturated steam, water, and water with anti-freeze solutions.
- Can the actuator be replaced separately? Yes, this assembly traditionally pairs the 599-03164 valve body with the 599-01081 4-inch pneumatic actuator.
- What is the maximum pressure rating? The valve body is rated to ANSI Class 250, supporting high-pressure commercial HVAC applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
