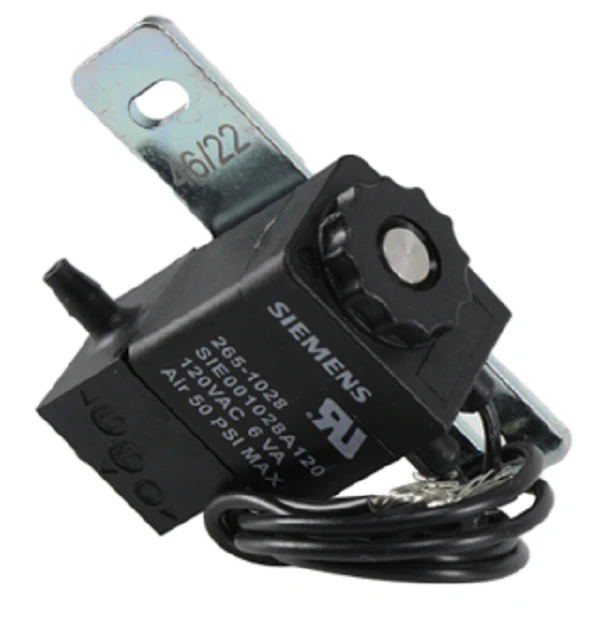

Siemens Building Technology 265-1028 Valve
The Siemens Building Technology 265-1028 is a professional-grade 3-way electro-pneumatic valve engineered for critical interlock applications between electrical and pneumatic control systems. Operating on a robust 110/120V AC coil, this open frame solenoid valve is a "Model 3" general-purpose switch designed to alternately apply or exhaust pressure from pneumatic circuits based on electrical input. Built for 1/4" barbed connections, it provides reliable two-position air flow control with a maximum operating pressure of 50 PSIG. The open frame yoke design is optimized for mounting flexibility within existing control panels or custom enclosures where space and direct visibility for maintenance are required. With a low power consumption of approximately 5.7 to 6 watts, the 265-1028 E-P valve ensures high-efficiency performance in demanding commercial HVAC and industrial automation environments, serving as a reliable 120V pneumatic solenoid solution for technicians requiring precise 3-port air switching.
Key Benefits- Universal Compatibility: Designed as a versatile Siemens 265 series component, it functions as an ideal replacement for various legacy pneumatic interlocks.
- Enhanced Durability: The 3-port solenoid air valve features a rugged PBT body and open wire leads, ensuring long-term reliability in temperature ranges from 0°F to 110°F.
- Simple Installation: Standard 1/4" barbed fittings allow for quick integration into existing pneumatic control systems without specialized adapters.
- Maintenance Accessibility: The open frame configuration allows technicians to inspect coil operation and wiring integrity without disassembling complex housings.
Can the 265-1028 be used in high-pressure steam applications?
No, this valve is specifically designed for pneumatic air flow control with a maximum pilot pressure of 50 PSIG. It is not rated for steam or high-pressure hydraulic fluids.
Does this valve require a specific mounting orientation?
One of the advantages of the Siemens 120V E-P valve is its mounting versatility; it can be installed in any position using the mounting holes provided in the open frame yoke.
What is the difference between the open frame and junction box models?
The 265-1028 is the open frame version (Model 3) which uses wire leads for direct wiring. Junction box models (like the 265-1022) include a protective metal enclosure for the electrical connections.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $67.53
-65%$67.53
$23.64Siemens Building Technology 265-1028 Valve
The Siemens Building Technology 265-1028 is a professional-grade 3-way electro-pneumatic valve engineered for critical interlock applications between electrical and pneumatic control systems. Operating on a robust 110/120V AC coil, this open frame solenoid valve is a "Model 3" general-purpose switch designed to alternately apply or exhaust pressure from pneumatic circuits based on electrical input. Built for 1/4" barbed connections, it provides reliable two-position air flow control with a maximum operating pressure of 50 PSIG. The open frame yoke design is optimized for mounting flexibility within existing control panels or custom enclosures where space and direct visibility for maintenance are required. With a low power consumption of approximately 5.7 to 6 watts, the 265-1028 E-P valve ensures high-efficiency performance in demanding commercial HVAC and industrial automation environments, serving as a reliable 120V pneumatic solenoid solution for technicians requiring precise 3-port air switching.
Key Benefits- Universal Compatibility: Designed as a versatile Siemens 265 series component, it functions as an ideal replacement for various legacy pneumatic interlocks.
- Enhanced Durability: The 3-port solenoid air valve features a rugged PBT body and open wire leads, ensuring long-term reliability in temperature ranges from 0°F to 110°F.
- Simple Installation: Standard 1/4" barbed fittings allow for quick integration into existing pneumatic control systems without specialized adapters.
- Maintenance Accessibility: The open frame configuration allows technicians to inspect coil operation and wiring integrity without disassembling complex housings.
Can the 265-1028 be used in high-pressure steam applications?
No, this valve is specifically designed for pneumatic air flow control with a maximum pilot pressure of 50 PSIG. It is not rated for steam or high-pressure hydraulic fluids.
Does this valve require a specific mounting orientation?
One of the advantages of the Siemens 120V E-P valve is its mounting versatility; it can be installed in any position using the mounting holes provided in the open frame yoke.
What is the difference between the open frame and junction box models?
The 265-1028 is the open frame version (Model 3) which uses wire leads for direct wiring. Junction box models (like the 265-1022) include a protective metal enclosure for the electrical connections.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
