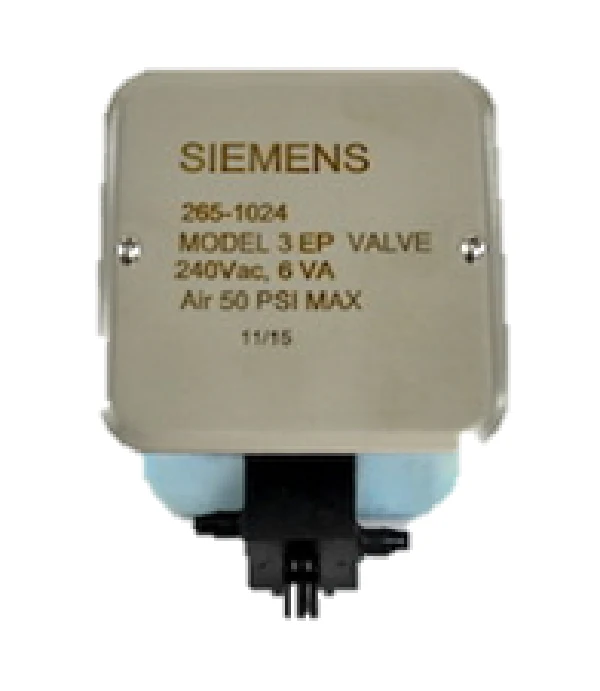

Siemens Building Technology 265-1024 Valve
The Siemens Building Technology 265-1024 is a professional-grade, two-position 3-way electro-pneumatic valve specifically engineered for high-voltage commercial HVACR control systems. Operating at 220/240V AC (50/60Hz), this Model 3 E-P valve serves as a critical interlock between electrical signals and pneumatic actuators, facilitating the seamless control of air flow to dampers and valves. Housed in a durable NEMA 1 equivalent junction box, the unit features 1/4-inch barbed pneumatic connections clearly labeled for Normally Closed (NC), Normally Open (NO), and Common (C) ports. Its robust electromagnetic coil is designed for continuous duty, supporting a maximum air pressure of 50 PSIG and an airflow capacity of 600 SCIM at 20 PSIG. This versatile component acts as a universal replacement for various legacy pneumatic relays, and its compact yoke design allows for flexible mounting in any orientation within existing control panels or field-mounted enclosures.
Key Benefits- High-Voltage Compatibility: Native 220/240VAC operation eliminates the need for step-down transformers in high-voltage control circuits.
- Flexible Installation: The inclusive junction box protects electrical terminations while the unit's orientation-independent design simplifies field mounting.
- Standardized Connectivity: 1/4" barbed fittings ensure secure integration with standard polyethylene or copper pneumatic tubing.
- Precision Air Management: A 3-way configuration allows for efficient switching and exhausting of pressure to maintain accurate actuator positioning.
- Industrial Durability: Constructed with a glass-filled thermoplastic body and Buna-N seals for reliable performance in ambient temperatures up to 122°F.
- What is the primary function of the NC and NO ports? In a standard setup, supply air is connected to the NC port. When the 240V coil is energized, the NC port opens to the Common (C) port to drive the actuator; when de-energized, the C port exhausts through the NO port.
- Can this valve be mounted horizontally? Yes, the Siemens 265-1024 is designed to be mounted in any position without affecting its mechanical operation or flow characteristics.
- Is this compatible with 110/120V systems? No, this specific model requires a 220/240V AC power source. For 120V applications, the Siemens 265-1022 or equivalent should be utilized.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
