Siemens Building Technology 240-00213 Valve Assembly

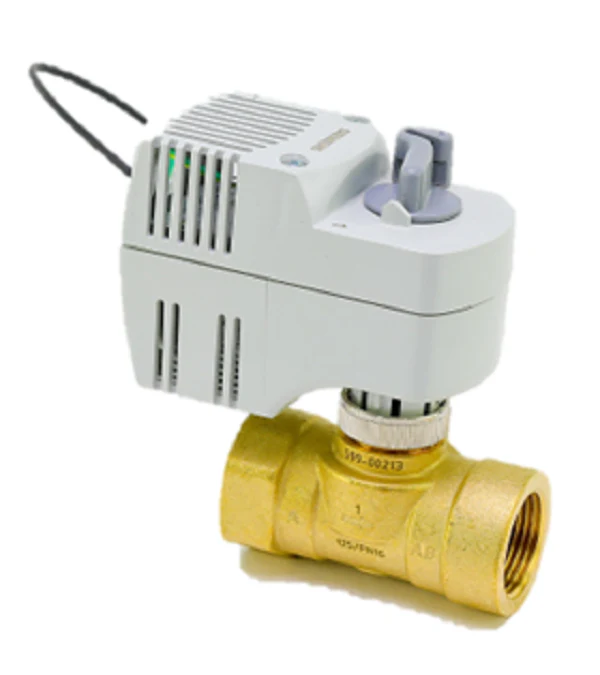

The Siemens 240-00213 is a heavy-duty 2-way normally closed zone valve assembly designed for reliable fluid control in hydronic systems. Featuring a rugged 1-inch NPT brass body and brass trim, this unit provides a 7.0 Cv linear flow characteristic, ensuring precise delivery for hot or chilled water applications such as fan coils, radiators, and baseboard heating. The assembly is driven by a 120Vac spring return actuator, which ensures the valve returns to its closed, fail-safe position during a power loss to prevent unintended thermal transfer.
Built for the rigors of commercial HVAC sensing and control, the Siemens 599 series zone valve utilizes a stainless steel stem and EPDM O-rings for superior sealing and longevity. The two-position actuated zone valve is rated for ANSI Class 125 operating pressures and can handle media temperatures ranging from 34°F to 230°F. The direct-coupled installation allows for straightforward field mounting without specialized tools, making it a preferred choice for technicians seeking a dependable Normally Closed 120V actuator solution for high-demand zoning requirements.
Key Benefits
- High 7.0 Cv flow capacity supports larger residential and light commercial hydronic loops.
- Mechanical spring return fail-safe ensures positive shut-off in the event of electrical failure.
- Durable brass body and trim construction resists corrosion in open and closed loop systems.
- Linear flow characteristic supports more predictable temperature control and system balancing.
- 120Vac 2-position control integrates easily with standard line-voltage thermostats and controllers.
Common Questions
How do you manually override the Siemens 240-00213?
The actuator features a manual override lever that allows for manual positioning during startup or troubleshooting; ensure power is disconnected before manual operation to avoid damaging the gear train.
What is the maximum close-off pressure for this 1-inch assembly?
When paired with the standard SFA11U actuator, this valve is rated to close off against a maximum differential pressure of approximately 29 psi.
Can this valve be installed in any orientation?
For optimal performance and to protect the electronics from potential leaks, the valve should be installed with the actuator positioned above the horizontal plane of the piping.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Siemens Building Technology 240-00213 Valve Assembly
The Siemens 240-00213 is a heavy-duty 2-way normally closed zone valve assembly designed for reliable fluid control in hydronic systems. Featuring a rugged 1-inch NPT brass body and brass trim, this unit provides a 7.0 Cv linear flow characteristic, ensuring precise delivery for hot or chilled water applications such as fan coils, radiators, and baseboard heating. The assembly is driven by a 120Vac spring return actuator, which ensures the valve returns to its closed, fail-safe position during a power loss to prevent unintended thermal transfer.
Built for the rigors of commercial HVAC sensing and control, the Siemens 599 series zone valve utilizes a stainless steel stem and EPDM O-rings for superior sealing and longevity. The two-position actuated zone valve is rated for ANSI Class 125 operating pressures and can handle media temperatures ranging from 34°F to 230°F. The direct-coupled installation allows for straightforward field mounting without specialized tools, making it a preferred choice for technicians seeking a dependable Normally Closed 120V actuator solution for high-demand zoning requirements.
Key Benefits
- High 7.0 Cv flow capacity supports larger residential and light commercial hydronic loops.
- Mechanical spring return fail-safe ensures positive shut-off in the event of electrical failure.
- Durable brass body and trim construction resists corrosion in open and closed loop systems.
- Linear flow characteristic supports more predictable temperature control and system balancing.
- 120Vac 2-position control integrates easily with standard line-voltage thermostats and controllers.
Common Questions
How do you manually override the Siemens 240-00213?
The actuator features a manual override lever that allows for manual positioning during startup or troubleshooting; ensure power is disconnected before manual operation to avoid damaging the gear train.
What is the maximum close-off pressure for this 1-inch assembly?
When paired with the standard SFA11U actuator, this valve is rated to close off against a maximum differential pressure of approximately 29 psi.
Can this valve be installed in any orientation?
For optimal performance and to protect the electronics from potential leaks, the valve should be installed with the actuator positioned above the horizontal plane of the piping.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
