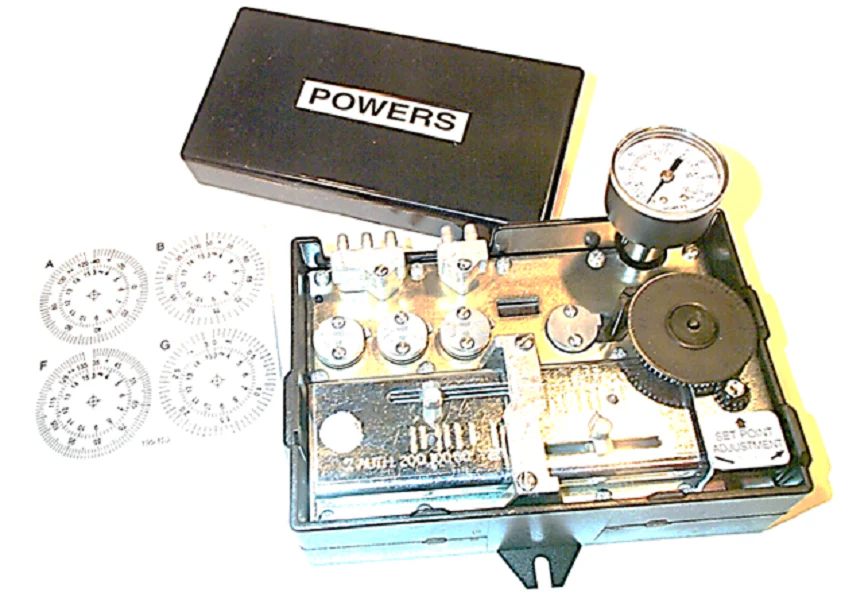

Siemens Building Technology 195-0003 Control
The Siemens Building Technology 195-0003 Control is a versatile pneumatic receiver-controller designed for precision in demanding HVACR environments. As a multi-input Retroline 195 Series component, this unit allows technicians to manage up to three pneumatic signals simultaneously, making it an essential solution for applications requiring automatic setpoint reset or complex proportional control. Engineered for high performance, it operates reliably with a standard supply pressure of 22 psi, supporting direct acting (DA) or reverse acting (RA) configurations via field-adjustable internal restrictors. This specialized HVAC pneumatic controller features a factory-installed 0 to 30 psig pressure gauge for real-time monitoring of control signatures and a Lexan glass-filled case for long-term durability on the job site. Whether you are performing a pneumatic system calibration or replacing a legacy Powers 195-0003 unit, this model provides the accuracy needed for temperature, humidity, and pressure regulation in commercial building automation systems.
Key Benefits- Multi-Input Flexibility: Capable of receiving up to three inputs, allowing for primary control with secondary reset or manual control point adjustment.
- Field-Serviceable Design: Features plug-in air connections and large, easy-to-read scales for simplified proportional band adjustment and authority settings.
- Precise Monitoring: Includes an integrated 0-30 psig gauge, ensuring technical staff can verify output pressure without additional diagnostic tools.
- Variable Proportional Band: Adjustment range of 2% to 20% for a 5 psi control pressure change, providing tight control over mechanical equipment.
- Durable Construction: Built with a 20% glass-filled Lexan case to withstand standard mechanical room conditions while remaining tamper-resistant.
How do I change the action from direct to reverse?
The Siemens 195-0003 can be modified for DA or RA by selecting the appropriate input ports (Input 1 or 2) and adjusting the internal restrictors according to the provided control schematic.
What is the maximum safe air pressure for this unit?
While the standard operating pressure is 22 psi, the unit is rated for a maximum safe supply pressure of 30 psi. Ensure your clean, dry air supply does not exceed this limit to prevent damage to the internal bellows and gaskets.
Does this unit come with calibration scales?
Yes, this model typically includes stick-on scales for the setpoint dial, supporting standard transmitter ranges in both English and metric units for accurate field calibration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $515.71
-65%$515.71
$180.50Siemens Building Technology 195-0003 Control
The Siemens Building Technology 195-0003 Control is a versatile pneumatic receiver-controller designed for precision in demanding HVACR environments. As a multi-input Retroline 195 Series component, this unit allows technicians to manage up to three pneumatic signals simultaneously, making it an essential solution for applications requiring automatic setpoint reset or complex proportional control. Engineered for high performance, it operates reliably with a standard supply pressure of 22 psi, supporting direct acting (DA) or reverse acting (RA) configurations via field-adjustable internal restrictors. This specialized HVAC pneumatic controller features a factory-installed 0 to 30 psig pressure gauge for real-time monitoring of control signatures and a Lexan glass-filled case for long-term durability on the job site. Whether you are performing a pneumatic system calibration or replacing a legacy Powers 195-0003 unit, this model provides the accuracy needed for temperature, humidity, and pressure regulation in commercial building automation systems.
Key Benefits- Multi-Input Flexibility: Capable of receiving up to three inputs, allowing for primary control with secondary reset or manual control point adjustment.
- Field-Serviceable Design: Features plug-in air connections and large, easy-to-read scales for simplified proportional band adjustment and authority settings.
- Precise Monitoring: Includes an integrated 0-30 psig gauge, ensuring technical staff can verify output pressure without additional diagnostic tools.
- Variable Proportional Band: Adjustment range of 2% to 20% for a 5 psi control pressure change, providing tight control over mechanical equipment.
- Durable Construction: Built with a 20% glass-filled Lexan case to withstand standard mechanical room conditions while remaining tamper-resistant.
How do I change the action from direct to reverse?
The Siemens 195-0003 can be modified for DA or RA by selecting the appropriate input ports (Input 1 or 2) and adjusting the internal restrictors according to the provided control schematic.
What is the maximum safe air pressure for this unit?
While the standard operating pressure is 22 psi, the unit is rated for a maximum safe supply pressure of 30 psi. Ensure your clean, dry air supply does not exceed this limit to prevent damage to the internal bellows and gaskets.
Does this unit come with calibration scales?
Yes, this model typically includes stick-on scales for the setpoint dial, supporting standard transmitter ranges in both English and metric units for accurate field calibration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
