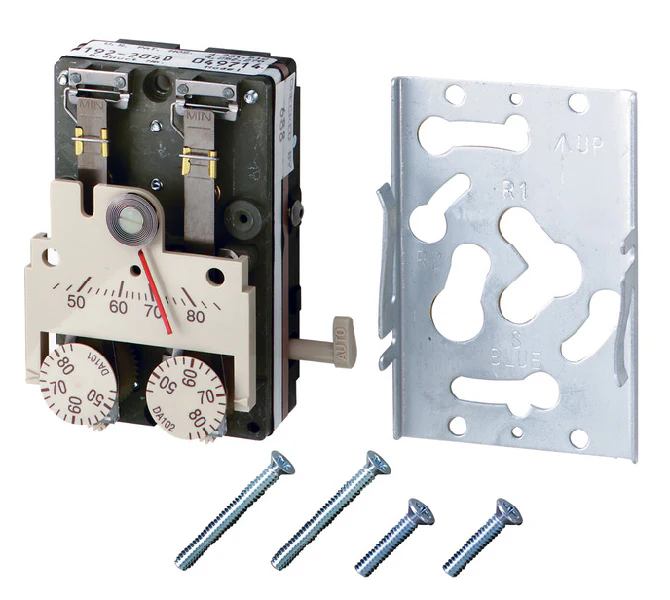

Siemens Building Technology 192-206 Thermostat
The Siemens Building Technology 192-206 is a professional-grade pneumatic room thermostat designed for high-performance climate control in commercial facilities. This Powerstar 192 series unit features a dual setpoint configuration, specifically engineered for day/night/vent applications using a direct-acting (DA/DA) control sequence. When your main supply air pressure shifts from 18 psi to 25 psi, the internal bimetal elements automatically toggle between daytime and nighttime setpoints, streamlining energy management during unoccupied hours. With a control range of 45-85°F, this three-pipe high air capacity controller provides the rapid response and modulation required for heavy-duty pneumatic valves and damper actuators.
Built for durability and precision, the 192-206 thermostat chassis includes integrated field-adjustable sensitivity and limit stops, allowing technicians to fine-tune the proportional output signal between 1 to 4 psi/°F. The design incorporates a nite vent feature and a manual override selector, ensuring occupant comfort even during off-hour occupancy without disrupting the primary schedule. The unit includes a control pressure test port accessible without removing the cover, facilitating rapid diagnostics and calibration in the field. This model is a standard choice for contractors looking for a reliable Siemens pneumatic control solution that integrates seamlessly with existing 5/32-inch OD plastic tubing infrastructure.
Key Benefits for Technicians- Automated Day/Night Changeover: Pressure-dependent switching between 18 psi and 25 psi eliminates the need for manual setpoint adjustments across large zones.
- High Air Capacity Design: The 3-pipe relay-based operation ensures fast response times for large pneumatic actuators.
- Field Calibration Simplified: Features a dedicated test port and graduated sensitivity scales for precise on-site tuning.
- Manual Override: Allows temporary daytime operation during night cycles with an automatic reset to night mode the following evening.
- Standardized Installation: Ships with a wall mounting plate and is compatible with various rough-in terminal boxes for retrofit or new construction.
- How do I adjust the sensitivity on this model? Use the graduated scale on the chassis to adjust the output between 1 and 4 psi per degree Fahrenheit for each mode.
- What air tubing size is required? This unit uses standard 5/32-inch (4 mm) OD plastic tubing for all air connections.
- Can I use this for reverse-acting applications? No, the 192-206 is specifically designed for direct-acting (DA) operation in both day and night modes.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
