Siemens Building Technology 192-201 Stat

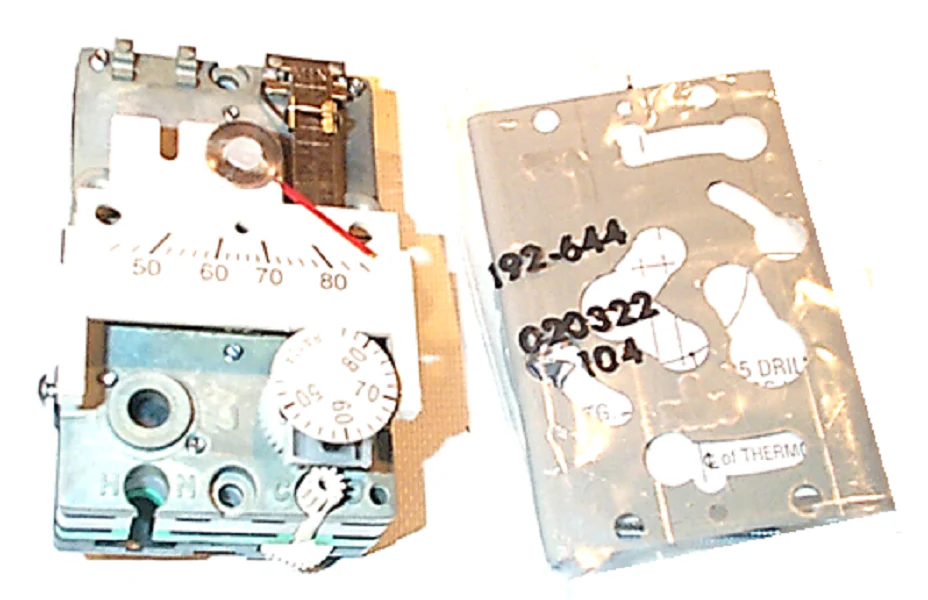

The Siemens 192-201 Powerstar single setpoint pneumatic room thermostat is a specialized 1-pipe, low air capacity controller engineered for high-precision environmental regulation in commercial HVAC systems. Operating on an 18 to 25 psi main air supply, this reverse acting (RA) thermostat utilizes a sensitive bimetal element and a proportional flapper nozzle to provide reliable modulating control. The unit supports a standard Fahrenheit scale ranging from 45°F to 85°F and is typically utilized for heating or cooling applications where a single output signal is required. This direct-replacement pneumatic control comes complete with a wall mounting plate and installation hardware, ensuring a clean retrofit onto existing TH192 terminal boxes.
For veteran technicians, the Siemens 192-201 offers critical technical advantages in the field:
- 1-pipe design: Optimized for low-air capacity, non-relay applications to minimize energy consumption.
- Reverse acting output: Provides a proportional signal that increases as temperature rises.
- Integrated test port: Allows for rapid output pressure verification without the need to remove the cover or disrupt the loop.
- Field adjustable limit stops: Enables precise setpoint range restriction to meet energy code requirements.
- Flexible mounting: Compatible with various rough-in kits, featuring 5/32-inch (4mm) O.D. plastic tubing connections.
Common Questions for HVAC Professionals:
Is the Siemens 192-201 suitable for 2-pipe high-capacity systems?
No, this specific model is a 1-pipe, low-capacity non-relay chassis. For high-volume air applications requiring a relay-type control, you should specify the 2-pipe version from the TH192 Powerstar series.
How do I calibrate the 192-201 in the field?
Calibration is achieved using the integrated test port and a standard calibration tool. The thermostat is factory-set to a 7.5 psi control pressure when the ambient temperature matches the setpoint at 72°F.
Can I use this thermostat for both heating and cooling?
Yes, as a reverse acting controller, it can manage heating or cooling loops depending on the seasonal changeover configuration of your pneumatic plant.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $114.38
-65%$114.38
$40.03Siemens Building Technology 192-201 Stat
The Siemens 192-201 Powerstar single setpoint pneumatic room thermostat is a specialized 1-pipe, low air capacity controller engineered for high-precision environmental regulation in commercial HVAC systems. Operating on an 18 to 25 psi main air supply, this reverse acting (RA) thermostat utilizes a sensitive bimetal element and a proportional flapper nozzle to provide reliable modulating control. The unit supports a standard Fahrenheit scale ranging from 45°F to 85°F and is typically utilized for heating or cooling applications where a single output signal is required. This direct-replacement pneumatic control comes complete with a wall mounting plate and installation hardware, ensuring a clean retrofit onto existing TH192 terminal boxes.
For veteran technicians, the Siemens 192-201 offers critical technical advantages in the field:
- 1-pipe design: Optimized for low-air capacity, non-relay applications to minimize energy consumption.
- Reverse acting output: Provides a proportional signal that increases as temperature rises.
- Integrated test port: Allows for rapid output pressure verification without the need to remove the cover or disrupt the loop.
- Field adjustable limit stops: Enables precise setpoint range restriction to meet energy code requirements.
- Flexible mounting: Compatible with various rough-in kits, featuring 5/32-inch (4mm) O.D. plastic tubing connections.
Common Questions for HVAC Professionals:
Is the Siemens 192-201 suitable for 2-pipe high-capacity systems?
No, this specific model is a 1-pipe, low-capacity non-relay chassis. For high-volume air applications requiring a relay-type control, you should specify the 2-pipe version from the TH192 Powerstar series.
How do I calibrate the 192-201 in the field?
Calibration is achieved using the integrated test port and a standard calibration tool. The thermostat is factory-set to a 7.5 psi control pressure when the ambient temperature matches the setpoint at 72°F.
Can I use this thermostat for both heating and cooling?
Yes, as a reverse acting controller, it can manage heating or cooling loops depending on the seasonal changeover configuration of your pneumatic plant.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
